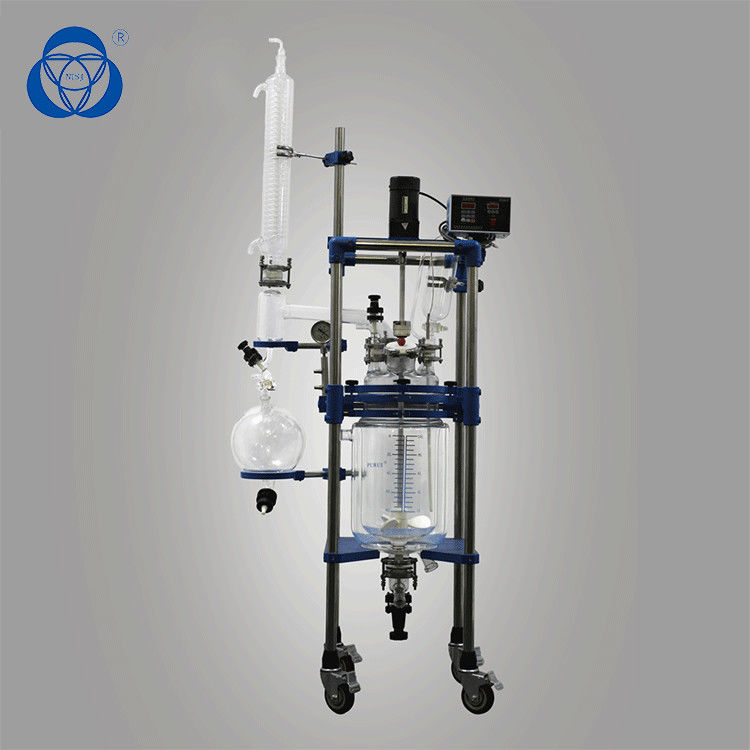

Name: 1L-5L Jacketed Glass Reactor Zero Space Draining Device For Synthetic Reaction
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-10
Availability: InStock

Home Products Jacketed Glass Reactor

1L-5L Jacketed Glass Reactor Zero Space Draining Device For Synthetic Reaction

Product Details:

Place of Origin:	CHINA
Brand Name:	NTSJ
Certification:	CE,ISO9001
Model Number:	FPGR-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Warranty:	1 Year	Automatic Grade:	Semi-Automatic
Type:	Reaction Kettle	Application:	New Material Synthesis
Vacuum Degree:	0.098	Capacity:	Customzied
Neck No. On Lid:	6	Name:	Chemglass Filter Reactor
Highlight:	high pressure glass reactor , laboratory reactor vessel

The Overhead Stirrer

1. Universal joint reduces vibration of condenser and make glassware joint safe and flexible.

2. Mechanical sealing, keeps high vacuum degree when operating.

3. Constant pressure funnel, liquid could charge continuously under vacuum.

4. Explosion proof is optional.

1. The transparent glass can be helpful to monitor the inner reaction.

2. The interlayer can inject hot/cold liquid to heatwinterize the inner layer. and can be completely removed after reaction

3. Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.

4. Universal wheels without shaking when mixing and can be moved overall.stainless steel structure is robust and beautiful.

5. Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.

We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.
All the glass reactor systems can be modified in our own factory quickly (dimension, motor power, explosion proof, additional glassware, customize port size, etc).
The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.

Product Model	PGR-3	PGR-5	PGR-10	PGR-30	PGR-50	PGR-100	PGR-200
Volume(L)	3	5	10	30	50	100	200
Neck No.on Cover	4	5	6	6	6	6	6
External Diameter of Inner Vessel(mm)	150	180	230	330	365	460	600
External Diameter of Outer Vessel(mm)	200	230	290	365	410	500	650
Cover Diameter(mm)	150	180	265	265	265	340	340
Vessel Height(mm)	300	400	450	730	850	950	1200
Motor Power(W)	40	60	140	140	140	250	750
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-1400	50-600	50-600	50-600	50-600	50-600	50-600
Torque(Nm)	0.27	0.95	2.23	2.23	2.23	3.98	6.37
Power(V)	220	220	220	220	220	220	220
Dimension(mm)	320350900	4504501200	6506501900	7005002100	8006002300	10007002700	12009003200

Stirring blades
The blades are available in PTFE,
stainless steel and can be clamped on the stirring shaft.

Vacuum Jacket
an additional vacuum jacket on the vessel can provide thermal insulation, get rid of frost and keep clear vision inside the vessel
Thermo-fluid port
We offer thermo- fluid ports in different forms (glass barb,stainless steel barb, flange, NPT thread, etc).

① Full set of glass part is produced by G3.3 borosilicate glass, owning excellent chemical and physical properties.
② Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.
③ Enable react under normal temperature, tap water connected can take away the reaction heat quickly.

Product Details

1L-5L Jacketed Glass Reactor Zero Space Draining Device For Synthetic Reaction

Packing and delivery

Packaging
-Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.
1L-5L Jacketed Glass Reactor Zero Space Draining Device For Synthetic Reaction

Our factory

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.

Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai.
Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.

Advantage of us is customize according to client need.
We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.

1L-5L Jacketed Glass Reactor Zero Space Draining Device For Synthetic Reaction

Our service

Customizable
1. The period, scope and condition of the warranty.
(1) We offer 1 years warranty on the date of shipping from China.
(2) During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(3) The damage caused by the transportation problem shall be borne by the seller.
2. Could you do customized for us?
We can provide all kinds of customized services.

3. How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways.
