Name: 20L 50L Double Jacketed Glass Reactor Laboratory Application Chemical Resistant
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: PGR-10
Availability: InStock

Home Products Glass Reactor Vessel

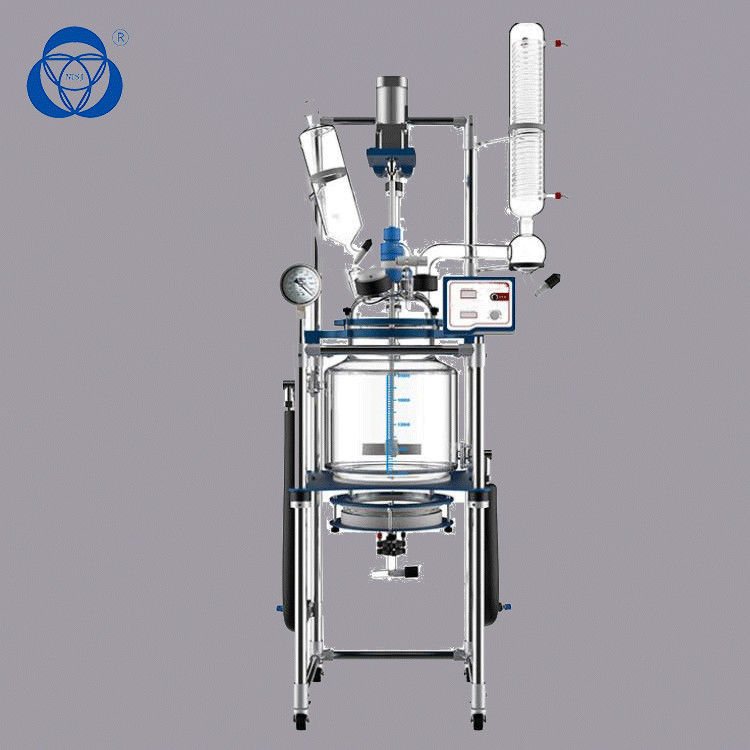

20L 50L Double Jacketed Glass Reactor Laboratory Application Chemical Resistant

Product Details:

Place of Origin:	Nantong, China
Brand Name:	Sanjing
Certification:	ISO9001
Model Number:	PGR-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Polywood Case
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100SETS/MONTH

Contact Now

Detailed Product Description

Heating Method:	Circulating Oil Heating	Usage:	Laboratory Mixing, Distillation And Extraction
Voltage:	220V	Motor Power:	140W
Lid Diameter:	265MM	Type:	New
Highlight:	single layer glass reactor , borosilicate glass reactor

Laboratory Glass Chemical Jacketed Reactor

Main features

1 ,GG17 high borosilicate glass, which can ensure good chemical and physical properties.

2, If hot oil cycles through the jacketed glass, heating experiments could be done.On the contrary, low temperature experiments can be done if the circulated fluid is cold.

3, The heat of reaction could be taken away quickly through water, which is cycling in the jacketed glass.

4 ,The design of large bottle mouth makes it easier to clean.

5, It can be used as distillation syntheses device.

The reaction in the glass reactor incorporates a lot of ingredients which make it easy for the engineers to determine the reaction of the ingredients under different applications. The glass reactor is in most cases made out of high-quality borosilicate glass which is resistant to chemical reactions. It can as well withstand high temperatures and pressure. In chemical engineering, a jacketed vessel is a container that is designed for controlling temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. Agitation can be also used in jacketed vessels to improve the homogeneity of the fluid properties (such as temperature or concentration)

Customize jacketed glass reactor

1. Glass Reactor with heating and cooling source circulating in jacket.

2. Glass Reactor is applied for heating and cooling synthesis reaction in vacuum tight condition.

3. Reflux, distillation under vacuum, separation, rectification, crystallization are also available with related configuration.

4. Resist to thermal shock and chemicals, vacuum tight and no dead space define the quality of reactor.

5. A wide choice of volumes are available from 1L to 200L.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Product Details

20L 50L Double Jacketed Glass Reactor Laboratory Application Chemical Resistant

Packing and delivery

Packaging
- Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases;
- Both neutral and customized packaging can be available.
Shipping
- By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.

Our service

1. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.

2. How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.

3. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
4. The period, scope and condition of the warranty.
(1) We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2) The damage caused by the transportation problem shall be borne by the seller.
