Advanced Rotary Vacuum Distiller , Laboratory Rotary Evaporator Efficient Tube Ejection

Product Details:

Place of Origin:	NANTONG, CHINA
Brand Name:	NTSJ
Certification:	ISO9001
Model Number:	PR-100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	5-7 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Rotating Speed(R/MIN):	0~120	Temperature Control Range:	RT-399℃
Temperature Fluctuation(℃):	±1℃	Dimension(lwh):	Capacity
Sealing:	PTFE Sealing	Warranty:	12 Months
Process:	Rotary,Thermal
Highlight:	rotary vacuum flash evaporator , rotary vacuum film evaporator

Rotary evaporators are used for:

1. Distillation of solvent

2. Concentration of solutions and suspensions

3. Crystallization or recrystallization

4. Synthesis and purifying of fine chemicals

Introduction:

1. Simple, counterbalanced lift mechanism

2. PTFE/glass liquid pathway for chemical inertness

3. Sparkless induction motor

4. Long life graphite impregnated PTFE vacuum seal

5. Efficient flask and vapour tube ejection sys

Evaporating Flask(L)	5L
Receiving Flask(L)	2L
Rotating Motor(W)	40W
Rotating Speed(R/MIN)	0~120
Water(Oil) Bath Power(W)	1500
Temperature Control Range	RT-399℃
Temperature Fluctuation(℃)	±1℃
Evaporation Rate(H2O)	>1.5L/h
Condenser	Vertical Double Condenser
Lifting Mode	Water(Oil) Bath Mannal Lifting
Lifing Height(mm)	0~220
Voltage	220V50HZ
Sealing Mode	PTFE,Fluoro Rubber Sealing
Note	Customized configuration is available

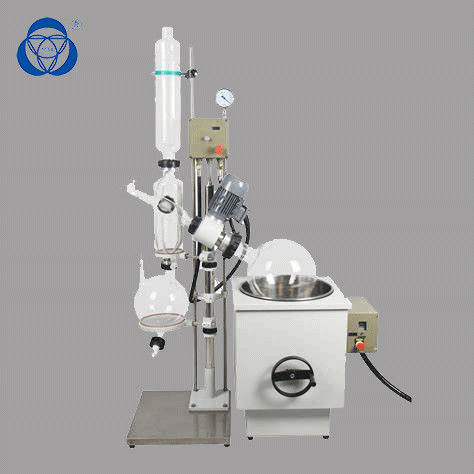

Borosilicate Rotary Evaporator

Rotary evaporator’s working principle is to rotate the glass flask filled with materials under constant temperature heating, and the system connect to the negative pressure to low the boiling point, then liquid forms a film and evaporates At last it recovers the menstruum by the glass coil condenser and receiving flask. It is specially applicable for the concentration, crystallization, separation and menstruum recovery of heat sensitive materials.

-- Explosion-proof rotary evaporator uses a explosion-proof motor, that will keep reaction to be safe in the whole process.
-- Adopt advanced frequency converter and electronic speed regulator to ensure the stable working of motor and improve the evaporation and recovery speed.
-- Receiving flask use ball-milling port for connection to ensure the high sealing, it also can be removed easily. Using high temperature resistant, ---- corrosion resistant and long-acting precision seals to ensure the gas tightness under high temperature, high negative pressure and strong corroding conditions when it is under dynamic sealing.
-- Intelligent temperature control can work with both water and oil bath, more widely used. Temperature fluctuation is only ±0.02 ℃, Evaporation is more stable and material can not be washed easily.
