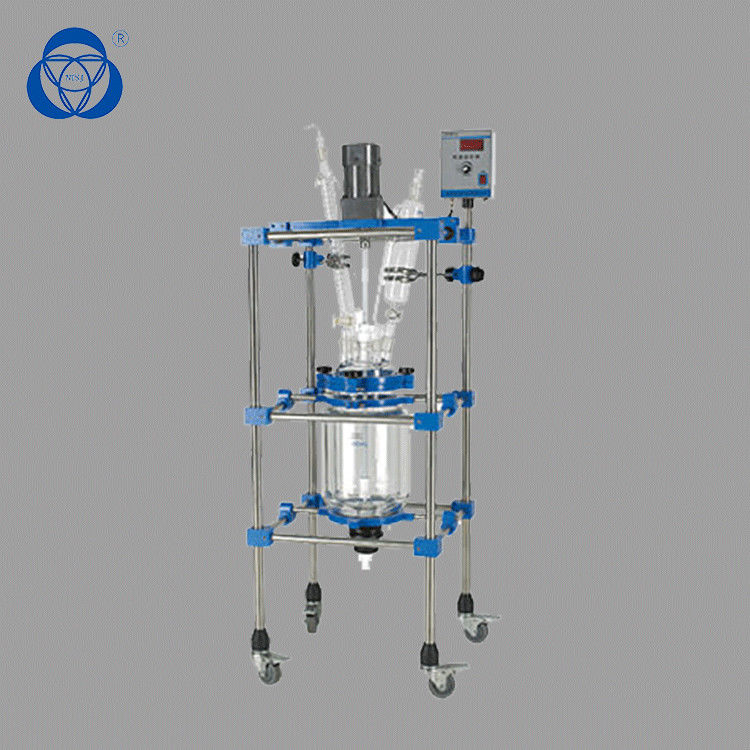

Name: Anti Vibration Jacketed Glass Vessel Long Time Durability Safe Operation Efficient
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-20
Availability: InStock

Home Products Jacketed Glass Vessel

Anti Vibration Jacketed Glass Vessel Long Time Durability Safe Operation Efficient

Product Details:

Place of Origin:	CHINA
Brand Name:	NTSJ
Certification:	CE,ISO9001
Model Number:	FPGR-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Glass Parts Material:	High Borosilicate Glass 3.3	Kettle Body Tolerable Temperature(℃):	-80~200
Kettle Body Resistance To Temperature Difference (℃):	90	Vacuum Degree:	0.098mpa
Warranty:	12 Months	Product Name:	Jacketed Glass Filter
Dimension(lwh):	Ordered Equipment	Application:	New Material Synthesis
Highlight:	high pressure glass reactor , laboratory reactor vessel

1. Variable frequency speed regulation, deceleration motor, constant speed, no brush, no spark, safe and stable, continuous work.

2. The whole set of glass is made of high borosilicate glass GG17 3.3, which has good chemical and physical properties.

3. Overall stainless steel column mobile frame structure, six reactor covers. The design of large mouth is easy to clean, and the standard socket can be used to assemble distillation and synthesis devices such as reflux, liquid feeding and temperature measurement.

4. Stainless steel coated polytetrafluoroethylene agitator is suitable for stirring and mixing liquids with low to high viscosity.

5.. Discharge port flange mouth and valve, no dead Angle in the container, removable discharge material for solid material thoroughly and quickly.

6. Alloy steel mechanical seal, ptfe joint, keep high precision seal under working condition.

7.Pt100 sensor probe, high temperature measurement accuracy, small error.

Dual jacketed glass reactors are designed for synthetic reactions of different types of materials while under a controlled temperature and vacuum environment.

Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Product Model	PGR-3	PGR-5	PGR-10	PGR-30	PGR-50	PGR-100	PGR-200
Volume(L)	3	5	10	30	50	100	200
Neck No.on Cover	4	5	6	6	6	6	6
External Diameter of Inner Vessel(mm)	150	180	230	330	365	460	600
External Diameter of Outer Vessel(mm)	200	230	290	365	410	500	650
Cover Diameter(mm)	150	180	265	265	265	340	340
Vessel Height(mm)	300	400	450	730	850	950	1200
Motor Power(W)	40	60	140	140	140	250	750
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-1400	50-600	50-600	50-600	50-600	50-600	50-600
Torque(Nm)	0.27	0.95	2.23	2.23	2.23	3.98	6.37
Power(V)	220	220	220	220	220	220	220
Dimension(mm)	320350900	4504501200	6506501900	7005002100	8006002300	10007002700	12009003200

Main features

Customizable
Adjustable stirring rate provides great torque or high speed.Patented PTFE stirring rod bearing for reliable and quiet operation.
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
Explosion proof display converter

This series of products adopts explosion-proof motor, explosion-proof frequency converter and explosion-proof intelligent temperature control box.Explosion proof motor, stable operation, big torque, no spark, long service life.
The speed can be set by speed, screw and torsion, which is convenient and intuitive. Besides, the temperature measuring probe in the kettle can be used to display the temperature in the kettle.

Anti Vibration Jacketed Glass Vessel Long Time Durability Safe Operation Efficient
