Name: Biotechnology Glass Distillation Unit Equipment Low Boiling Points Jacketed Feeding Flask
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPR-10
Availability: InStock

Home Products Glass Distillation Unit

Biotechnology Glass Distillation Unit Equipment Low Boiling Points Jacketed Feeding Flask

Product Details:

Place of Origin:	NANTONG,CHINA
Brand Name:	NTSJ
Certification:	ISO9001
Model Number:	FPR-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	5-7 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Dimension(LWH)::	1170340410MM	Receving Flask::	10L
Vacuum Degree:	0.098Mpa	Rotary Flask:	10L
Receiver:	5L	Condition:	New
Warranty:	One Year	Process:	Vacuum Distillation,Rotary,Thermal,Evaporator
Highlight:	distillation glassware kit , short path distillation glassware

Many materials, including petroleum,heavy residue, chemical medicine, medicine and natural food, health care products, fatty acid and so on, are generally heat sensitive and viscous. Moreover, they also possess high boiling points. Separating these materials from their components and maintaining the quality of such products are only able to distillate at low boiling points or even lower than the boiling temperature. Besides, it is also capable of

When the operating vacuum is about 500 Pa, it is capable of conducting in the scratch film evaporator or falling film evaporator. However, if the distillation is operate under the high vacuum status( for instance, the pressure ranges from 0.001 to 100Pa), problems are bound to cause. Therefore, it is necessary to choose the evaporator which the vapor pressure id no less than pressure difference caused by heating and cooling surface, and the evaporator quipped with outside condenser is excluded from the distillation process under the high vacuum range.

In contrast, the short-path evaporator is quietly adaptable to this occasion, and the condenser should be placed within evaporator and opposite to heat distillation. Therefore, as a relatively new equipment which is not widely applied in industrial production, the short-path distillation is able to solve many tough issues that normal distillation technical cannot conquered.

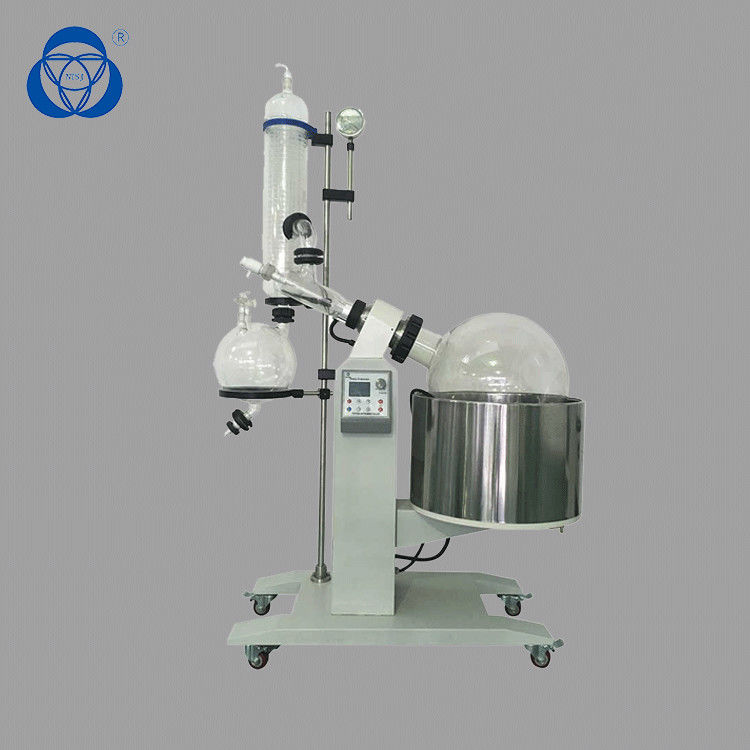

Rotary evaporator (or rotavap /rotovap)Rotary vacuum evaporators are efficient laboratory distillation units for applications like standard solvent distillations, concentration of reaction mass or solutions, separation of solvents from extracts, crystallization and powder drying. It always used in several big industrials, including but not limited to: Pharmaceutical, Biotechnology, chemicals, cosmestics and many more

Vacuum Rotary evaporator

Ex-proof rotary evaporator adopts ex-proof electric apparatus to motor and control parts, which is applicable for the places need ex-proof.

Its working principle is to rotate the glass flask which filled with materials under constant temperature heating, and the system connect to the negative pressure to low the boiling point, then liquid forms a film and evaporates,at last it recovers the menstruum by the glass coil condenser and receiving flask. It is specially applicable for the concentration, crystallization, separation and menstruum recovery of heat sensitive materials. Adopt advanced frequency conversion and electronic speed regulation to ensure the stable working of motor and improve the evaporation and recovery rate.

Features

1. Bath can be lift and vacuum feeding reduced the breakage of rotating glass flask. When evaporation under low boiling point, receiving bottle can be immersed into the ice bath to reduce the second evaporation.

2. Receiving flask use ball-milling mouth for connection, can remove easily and reach high performance sealing.

3. Adopt high temperature resistant, corrosion resistant and long-acting precision seals to ensure the gas tightness under high temperature, high negative pressure and strong corroding conditions when it is in dynamic sealing.

4. Adopt Japanese Technology AC induction motor, variable speed, no brush, no spark, can work effectively for a long time.

5. Chassis, bath pot, main bar, shaft of rotary evaporator are made of high qualified stainless steel, appearance is attractive and anti-corrosive.

6. Intelligent temperature control with digital display, can work with both water and oil bath, more widely used. Temperature fluctuation is only ±0.02 ℃. Evaporation is more stable and material can not be washed easily.

7. The series modular design on the whole set makes it extensible and easy to install, and more convenient to maintain.

Biotechnology Glass Distillation Unit Equipment Low Boiling Points Jacketed Feeding Flask
