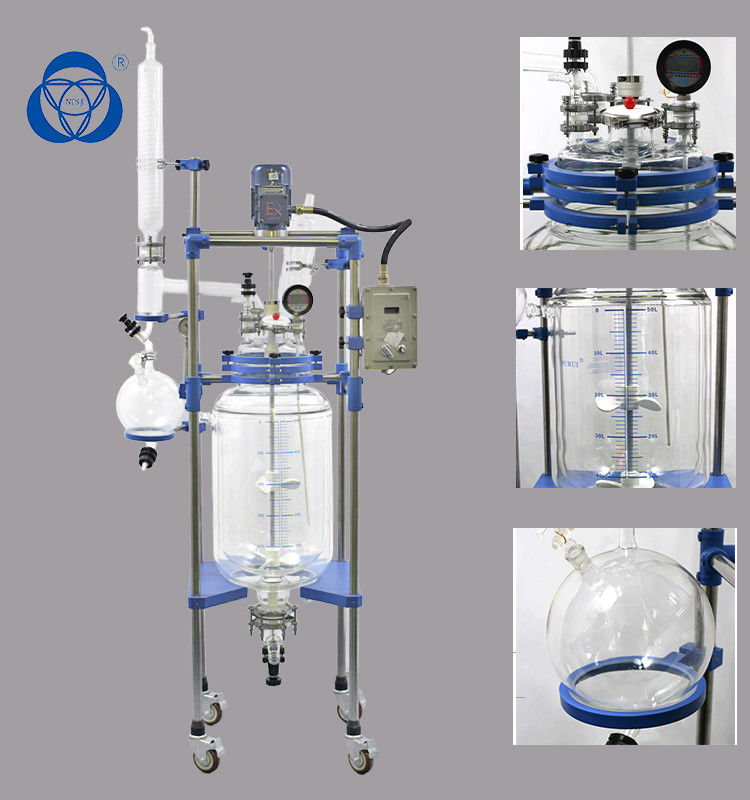

Features of Vacuum Glass Reactor Jacketed Mixing Vessel:
1. High borosilicate glass has good physical and chemical properties
2. The instrument is a fully closed system. Various liquid gas can be poured into it by minus pressure.
3. Special long life stirring sealing cap, the vacuum degree may come up to -0.098mpa
4. Only the GG17 Glass and PTFE can touch the material there exists no pollution with it.
5. Digital display of constant mixing speed, frequency conversion, work steadily
6. Frequency control speed gear motor, smooth running,high torque, automatic booster, no spark, noise free, long life.
Double glass reactor ,double glass design,interlayer can pass different cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction. Setting thermostat conditions, in confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals and new materials synthesized ideal test production equipment.
The key part:
1. The separable kettle body and lid, easy to charge and cleaning.
2. Excellent craft to keep the connection ports under vacuum condition .
3. 6 ports. could connect thermometer, stirrer, distillation unit, reflux unit, funnel etc. multiple function as you wish.
| Product Model |
PGR-50 |
PGR-80 |
PGR-100 |
PGR-150 |
PGR-200 |
| Volume(L) |
50 |
80 |
100 |
150 |
200 |
| Neck No.on Cover |
6 |
6 |
6 |
6 |
6 |
| External Diameter of Inner Vessel(mm) |
365 |
410 |
460 |
550 |
600 |
| External Diameter of Outer Vessel(mm) |
410 |
460 |
500 |
600 |
650 |
| Cover Diameter(mm) |
265 |
340 |
340 |
340 |
340 |
| Vessel Height(mm) |
850 |
950 |
950 |
980 |
1200 |
| Motor Power(W) |
140 |
250 |
250 |
400 |
750 |
| Vacuum Degree(Mpa) |
0.098 |
0.098 |
0.098 |
0.098 |
0.098 |
| Rotation Speed(rpm) |
50-600 |
50-600 |
50-600 |
50-600 |
50-600 |
| Torque(Nm) |
2.23 |
3.98 |
3.98 |
6.37 |
6.37 |
| Power(V) |
220 |
220 |
220 |
220 |
220 |
| Dimension(mm) |
800*600*2300 |
1000*700*2500 |
1000*700*2700 |
1200*900*3000 |
1200*900*3200 |
Main features
※ When glass interlayer connecting to hot oil and been circulated, it can do heating reaction, connecting to refrigerating fluid can do low temperature reaction.
※ Enable reaction under normal temperature, that is connecting to tap water can take away the reaction heat quickly.
※ Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.
※ Main body is made from stainless steel, which is beautiful and anti-corrosion.
※ Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
※ Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.
※ The inner core of stirring rod is made from 321 stainless steel, strengthened anti-corrosion property, military technology makes workmanship more exquisite, operation with high proficiency.
※ Customizable
Product Details
Packing and delivery
Packaging
- The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
- Both neutral and customized packaging can be available.
Shipping
- We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
Our factory
Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China,The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products which are widely used in pharmaceuticals , chemicals , biological pharmacy , new materials , noble metals and other files , meanwhile , we can provide relevant industry with design , manufacturing , equipment selection instrument supporting , installation , debugging . maintenance and other services etc.
Our service
※ The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
※ How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
※ How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
※ Could you do customized for us?
We are a manufacturer that can provide all kinds of customized service.
