Name: Continuous Feed Rotary Vacuum Evaporator , Industrial Rotavapor Excellent Sealing
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-50
Availability: InStock

Home Products Rotary Vacuum Evaporator

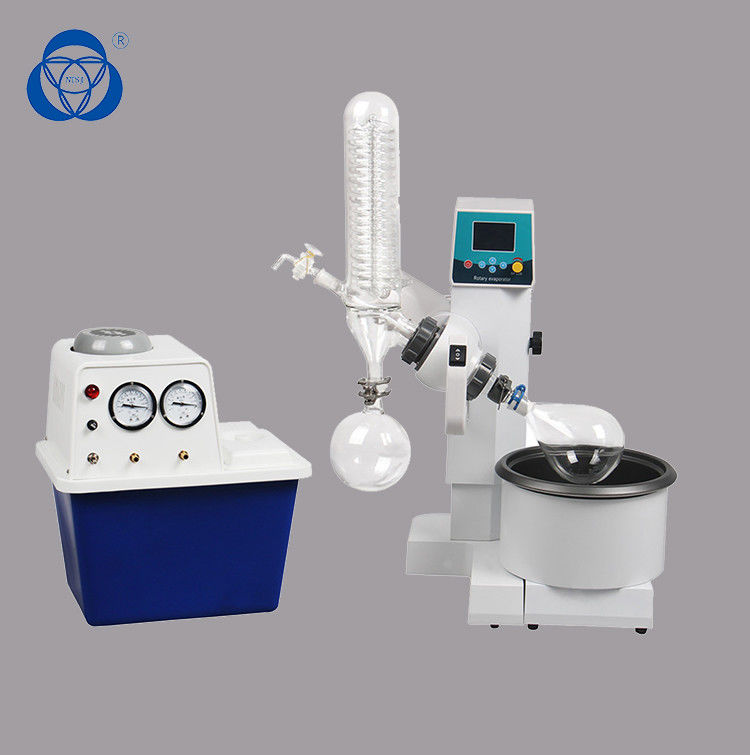

Continuous Feed Rotary Vacuum Evaporator , Industrial Rotavapor Excellent Sealing

Product Details:

Place of Origin:	CHINA, JIANGSU
Brand Name:	Sanjing
Certification:	CE,ISO9001
Model Number:	FPGR-50

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Main Uses:	Pharmaceutical, Biotechnology, Chemicals,cosmestics	Weight:	150-200kg
Rotary Flask:	50L	Sealing:	PTFE Sealing,Main PTFE Seal
Process:	Thermal,Evaporator	Application:	Industrial Rotary Evaporator
Condition:	New	Vacuum Degree:	0.098Mpa
Highlight:	rotary evaporator distillation , rotary vacuum film evaporator

1. Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.

2. PID temperature controller ensures accurate temperature control is maintained.

3. Strong & Durable Stainless steel frame , Stainless steel 304 material.

4. High Borosilicate GG3.3 with uniform thickness with good performance in physical and chemical property.

5. Easy, straight-forward visual operation with digital speed and temperature display.

6. Special sealing structure and sealing material, high corrosion resistance.

7. Easy to install and disassembled, easy to operate&maintain.

Intelligent temperature controller, can work with both water and oil bath, more widely used. Temperature fluctuation is only ±0.02 ℃. Evaporation is more stable and material can not be washed easily.
The series modular design on the whole set makes it extensible and easy to install, and more convenient to maintain.
Adopt advanced frequency converter and electronic speed regulator to ensure the stable working of motor and improve the evaporation and recovery speed.

The lab chemical distillation rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such as n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure.

Product model	FPR-5	FPR-10	FPR-20	FPR-50	FPR-100
Evaporation Flask(L)	5L	10L	20L	50L	100L
Receiving Flask(L)	2L/3L	5L/50#	10L+5L	10L+10L	20L+30L
Motor Power(W)	90	120	120	180	370
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	10-90	5-100	5-110	5-110	5-110
Evaporation Speed(L/h)	2	3.5	5	8	15-18
Power(V)	220	220	220	220	220
Dimension(CM)	55×35×110	55×35×110	110×70×200	120×80×220	170×83×280
