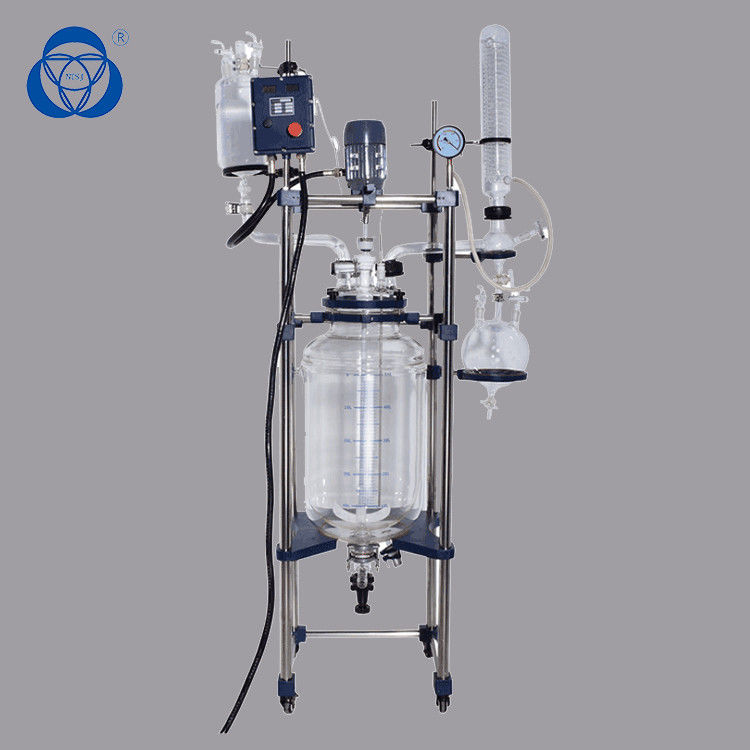

Name: Convenient Feed Jacketed Glass Reactor Vessel Uniform Controlled Speed
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-50
Availability: InStock

Home Products Jacketed Glass Reactor

Convenient Feed Jacketed Glass Reactor Vessel Uniform Controlled Speed

Product Details:

Place of Origin:	CHINA
Brand Name:	Sanjing
Certification:	CE,ISO9001
Model Number:	FPGR-50

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Condenser:	DN40 Ball Mouth	Liquid Material Inflow:	5L 24#
Stir Medium Flange:	Stir Medium Flange	Vacuum Degree:	-0.098mpa
After-sales Service Provided:	Video Technical Support,Field Maintenance And Repair Service	Application:	New Material Synthesis
Automatic Grade:	Semi-Automatic	Voltage:	Customizable As Clients' Region
Warranty:	1 Year
Highlight:	laboratory reactor vessel , borosilicate glass reactor

Vacuum glass reactor jacketed mixing vessel is designed double- level glass, reagents are set in the inner layer of double layer glass reaction kettle, at the same time, vaacuum can be taken out and mixing speed be adjusted. Interlayer can lead in refrigerating fluid, water or heating liquid to cool or heat the materials. It can do stirring reaction, combination, separation, concentration, distillation, etc. Widely used in the industrial research experiment, middle scale test, production of chemistry, modern refined chemical, biological pharmacy, new material synthesis, etc.

Flange quick press ring

One-piece quick clip design. Offer new experience on easy, reliable, and high sealing connection .

PTFE flush discharge valve

No-sample accumulation in valve during operation and discharge. Max drift diameters is 20mm.

A 50L Glass Reactor has several applications. It is highly effective in controlling temperature and pressure under which chemical reactions take place. Besides, you can find it applied in batch reactions where chemicals have to be tested before they can be produced on a large scale. The size of the glass reactor makes it ideal for semi pilot applications.

Product Model	FPGR-5	FPGR-10	FPGR-30	FPGR-50
Volume(L)	5	10	30	50
Neck No.on Cover	5	6	6	6
External Diameter of Inner Vessel(mm)	180	230	330	365
External Diameter of Outer Vessel(mm)	230	290	365	410
Cover Diameter(mm)	180	265	265	265
Vessel Height(mm)	400	450	730	850
Motor Power(W)	120	120	180	180
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-600	50-600	50-600	50-600
Torque(Nm)	1.9	1.9	2.86	2.86
Power(V)	220	220	220	220
Dimension(mm)	4504501200	6506501900	7005002100	7005002300

In most cases, the 50L Glass Reactor is made out of high-quality borosilicate glass. The glass is used in making the reactor due to its ability to withstand high temperate and pressure. There are several chemicals used in the chemical reaction. It is essential to choose a material that is highly resistant to the chemical reaction.

The use of borosilicate makes it possible for different chemical reactors to occur in the glass but the vessel will not be affected. Even at high temperate and pressure, the borosilicate glass will still hold its shape.

The reactor glass needs some form of stirring so that the chemicals can mix well for the perfect chemical reaction. The stirring process is brought about due to the use of a motor.

The booster motor is carefully selected to ensure the chemical reaction takes place in an ideal environment.

Convenient Feed Jacketed Glass Reactor Vessel Uniform Controlled Speed
