Corrosion Resistance Vacuum Distillation Equipment Short Concentration Time

Product Details:

Place of Origin:	CHINA
Brand Name:	NTSJ
Certification:	CE,ISO9001
Model Number:	FPGR-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Operating Temperature:	Up To 300℃	Wiper:	PTFE Scraper
Vacuum Level:	Better Than 10pa	Application:	New Material Synthesis
Condition:	New	Automatic Grade:	Semi-Automatic
Certification:	CE,ISO9001	Type:	Reaction Kettle
Highlight:	laboratory rotary evaporator , micro rotary evaporator

Main Features

1. Evaporation efficiency is very high, can reduce retention time, with minimal time delay.

2. Molecular distillation system is composed of high borosilicate glass 3.3, 316L stainless steel and PTFE, so it has excellent anti-corrosion ability.

3. The main part of the molecular distillation system is made of high borosilicate glass 3.3, and the whole operation process can be well observed.

4. The high precision distillation cylinder body enables the liquid to form a complete integrated film on the heating surface.The inner wall of the barrel body is smooth and bright, not easy to stick to the material and scaling.

5. imported brand variable frequency speed reduction motor,safe and reliable in operation;equipped with self-cooling fan,it can continuous working for a long time.

6. the magnetic drive system makes it possible to seal the whole machine.the transfer bar of the drive motor does not need to pass through the main distiller.the whole set of the distillation system possess good sealability.The min vacuum pressure can reach 0.001mba.

7. the max temperature of the equipment can up to 250ºC/300ºC ,accurate temperature control can achieved.

8. maximum the theroretical vacuum degree can up to 0.05 mbar or 0.001mbar.(secondary diffusion pump is needed)

9. You can free choose of scraper film forming system and self-cleaning roller system.

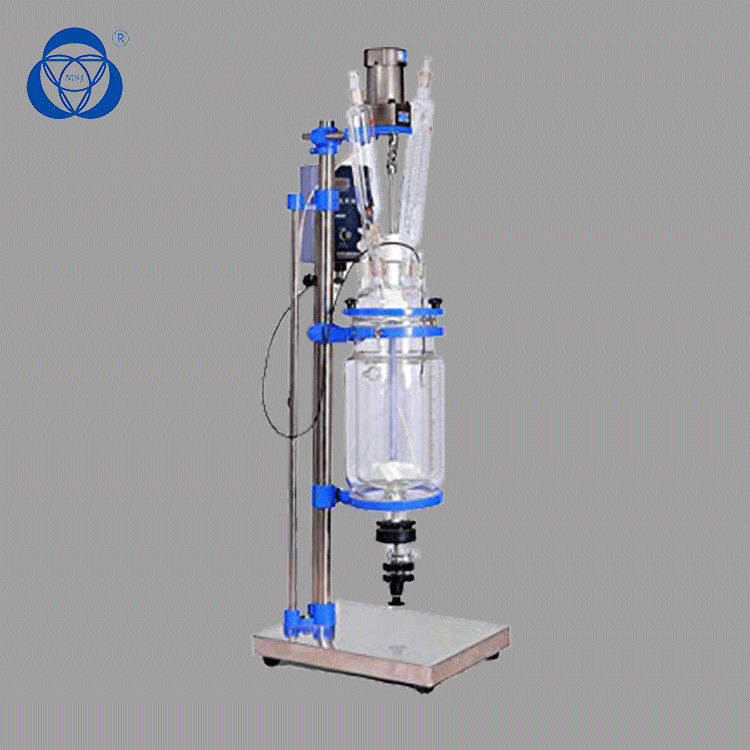

The Glass Reactor is a generic term for a type of vessel widely used in the process industries. It is used for a variety of process operations,such as dissolution of solids, product mixing, chemical reactions, batch distillation, crystallization, extraction and polymerization.

The advantages of the glass reactor lie with its versatility and visibility.A single vessel system can carry out a sequence of different operations without the need to break containment which is useful when processing toxic or highly potent compounds.

A typical glass reactor consists of a glass vessel with an agitator and integral heating/cooling system. The borosilicate glass vessels come with sizes from 1L up to 100L. Liquids or solids are feed via connections at the top cover of the reactor. Vapors are discharged through the connections at the top and the wastes are usually discharged out from the bottom.

Product Model	PGR-3	PGR-5	PGR-10	PGR-30	PGR-50	PGR-100	PGR-200
Volume(L)	3	5	10	30	50	100	200
Neck No.on Cover	4	5	6	6	6	6	6
External Diameter of Inner Vessel(mm)	150	180	230	330	365	460	600
External Diameter of Outer Vessel(mm)	200	230	290	365	410	500	650
Cover Diameter(mm)	150	180	265	265	265	340	340
Vessel Height(mm)	300	400	450	730	850	950	1200
Motor Power(W)	40	60	140	140	140	250	750
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-1400	50-600	50-600	50-600	50-600	50-600	50-600
Torque(Nm)	0.27	0.95	2.23	2.23	2.23	3.98	6.37
Power(V)	220	220	220	220	220	220	220
Dimension(mm)	320350900	4504501200	6506501900	7005002100	8006002300	10007002700	12009003200

1. It adopts AC frequency control of motor speed So the rev is steady , no spark appear,wide moment, safe, and can be used as the constant working.

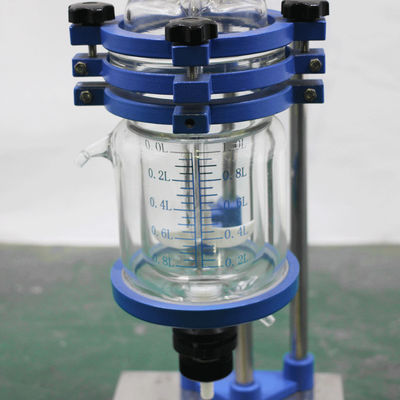

2. It is double-layer jacketed structure. The thickness of the glass is 5-7 mm with good chemical and physical properties.
3. The teflon components sealing method makes it in a state of high vacuum ,anti-acid and anti-alkali.
4. It can work under the ordinary pressure and negative pressure and can reach the -0.098Mpa positive pressure.
5. The real time temperaturanzeige

Packing and delivery

We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.
Sufficient inner protection with different materials, including bubble bag, foam board and others.
The glass parts will be wrapped with foam material,then put into the carton, all parts will be packed into wooden case finally; Customized packaging can be available.
