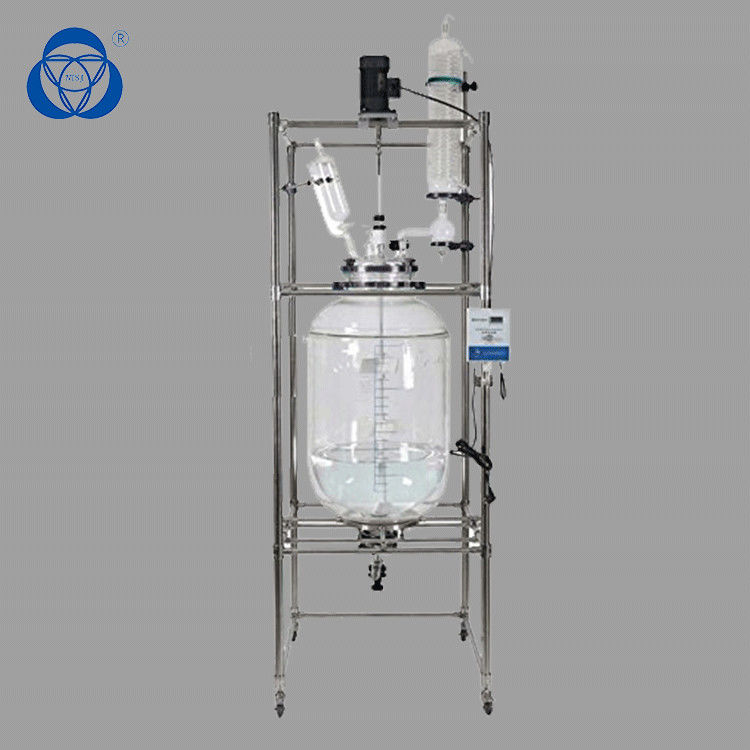

Name: Distillation High Pressure Glass Reactor Acid Alkali Resistant Mechanical Seal Stir Plug
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-200
Availability: InStock

Home Products High Pressure Glass Reactor

Distillation High Pressure Glass Reactor Acid Alkali Resistant Mechanical Seal Stir Plug

Product Details:

Place of Origin:	CHINA
Brand Name:	NTSJ
Certification:	CE,ISO9001
Model Number:	FPGR-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Type:	Reaction Kettle	Dimension(lwh):	Ordered Equipment
Condition:	New	Vacuum Degree:	-0.098mpa
Automatic Grade:	Semi-Automatic	Warranty:	1 Year
Highlight:	borosilicate glass reactor , single layer glass reactor

In chemical engineering, a jacketed vessel is a container that is designed for controlling temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. Agitation can be also used in jacketed vessels to improve the homogeneity of the fluid properties (such as temperature or concentration).

Low speed booster motor;high torque; no spark;frequency control, smooth operation. PTFE rotary seal assembly; Patented product; High vacuum degree and long useful life. 304 stainless steel frame with wheels and brake. PTFE no-liquid-accumulation discharge valve, no leak and no pollution to the solvent. Integrated jacketed reaction flask with excellent sealing performance, simple and safe to clean the bottle. The supporting interface can be customized, and can be conveniently connected with other equipment. Selection of our company's heating and cooling circulating device, we match standard connector and the suitable connection pipe.

Glass reactors vessel are a general term for containers that are widely used in the process industry. Used in various process operations such as solids dissolution, product mixing, chemical reactions, batch distillation, crystallization, extraction and polymerization. Used in pharmaceutical, petrochemical, food, fine chemical synthesis, agrochemical, paint and dye industries.

Product Model	PGR-3	PGR-5	PGR-10	PGR-30	PGR-50	PGR-100	PGR-200
Volume(L)	3	5	10	30	50	100	200
Neck No.on Cover	4	5	6	6	6	6	6
External Diameter of Inner Vessel(mm)	150	180	230	330	365	460	600
External Diameter of Outer Vessel(mm)	200	230	290	365	410	500	650
Cover Diameter(mm)	150	180	265	265	265	340	340
Vessel Height(mm)	300	400	450	730	850	950	1200
Motor Power(W)	40	60	140	140	140	250	750
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-1400	50-600	50-600	50-600	50-600	50-600	50-600
Torque(Nm)	0.27	0.95	2.23	2.23	2.23	3.98	6.37
Power(V)	220	220	220	220	220	220	220
Dimension(mm)	320350900	4504501200	6506501900	7005002100	8006002300	10007002700	12009003200

Main features

Borosilicate glass has good chemical and physical properties, large bottle mouth, manual cleaning.
Mechanical seals use proprietary technology to maintain optimum vacuum (0.098 Mpa) in similar products on the market.

The whole body adopts stainless steel frame structure, which is compact and sturdy, stable and reliable, and does not shake when stirring.
With brake casters, the movement is convenient and reliable.

All PTFE material values, no pleural effusion, no leakage, corrosion resistance.
Frequency control, AC induction motor, digital display, constant speed, no brush, no spark, safe, stable, continuous work.

There is no dead angle glass discharge valve, solid/liquid material can be easily released from the bottom.
It can be used as a distillation synthesis unit.
Liquid crystal display makes it easier and more convenient to measure temperature.

Customizable

Packing and delivery
-Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases; -Both neutral and customized packaging can be available. -By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.

Distillation High Pressure Glass Reactor Acid Alkali Resistant Mechanical Seal Stir Plug
