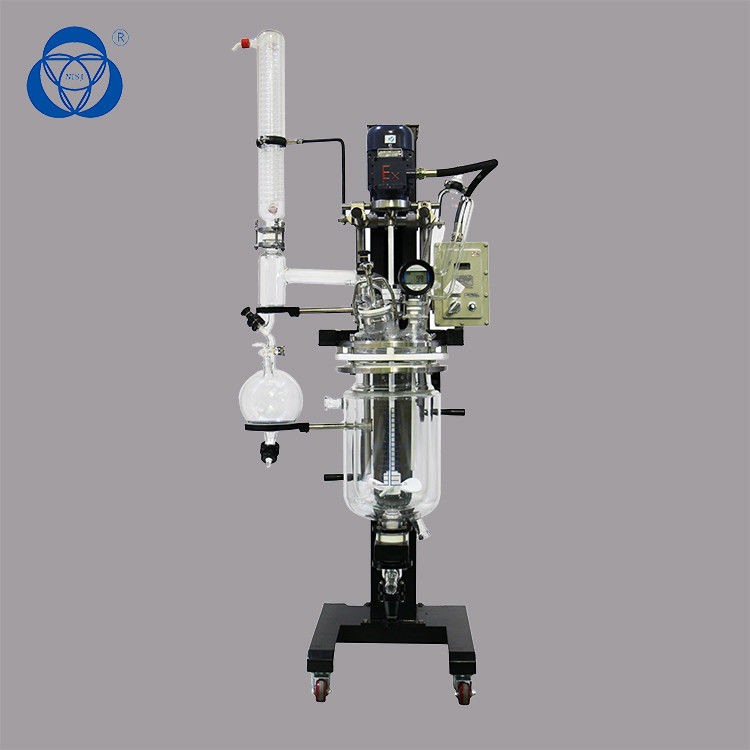

Name: Distillation Jacketed Glass Reactor High Temperature Resistant Frequency Control
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-10
Availability: InStock

Home Products Jacketed Glass Reactor

Distillation Jacketed Glass Reactor High Temperature Resistant Frequency Control

Product Details:

Place of Origin:	CHINA
Brand Name:	Sanjing
Certification:	CE,ISO9001
Model Number:	FPGR-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Volume Of The Reactor Bottle::	50L	Stirring Speed:	0-450rpm
Reaction Temperature Of The Reactor:	-80-250℃	Voltage:	220V
Certification:	CE,ISO9001	Application:	Lab Stirring, Distillation
Highlight:	laboratory reactor vessel , borosilicate glass reactor

1. It is with standard 304 stainless steel, it can resist acid and alkali.

2. Jacketed vessel is with material high borosilicate glass, can reach to max temperature 300degree, min temperature -80degree(tested by technician), but we need to clarify that we only suggest to use max temperature 250degree, because of it has PTFE valve and PTFE sealing,etc.

3. Bottom Discharging valve: it has two kinds respective for side discharging and non- side discharging valve(straight down discharging), the side discharging valve is easy to connect with other afiliated equipment(for example the another reactor with same function, or getting samples easily,etc);as for non-side discharging valve, it is with same function with side discharging valve, and with 100% PTFE material.

4. Jacketed Vessel, the inner wall is 6mm,the outer wall is 8mm. The active pressure is with 0.2Mpa(about 2KGS),the negative pressure is with -0.098Mpa, the inner wall was connected with outer wall by high temperature,no faulty, no blowhole(our technician needs to do test experiment excluding faulty).

Different cold and hot circulating fluid (hot water / hot oil / freezing liquid) can be put into the layer of double glass reactor. In the sealed glass container, the reactants are stirred and distilled at normal pressure or negative pressure and can be used for various biochemical synthesis reactions under constant temperature conditions, and can also be reflux or distilled at different temperatures.

The reaction kettle covers different openings to realize the different effects of feeding, measuring temperature, recovering distillates and so on.

The full transparent reaction process is an ideal test equipment for modern fine chemicals, new biochemicals research and development, pharmaceutical intermediates, precious metals purification, new graphene energy materials and aerospace materials. We keeps pace with the times, can provide the reaction kettle system from simple kettle to complex process. The product can be used with circulating water multipurpose vacuum pump, high and low temperature circulation device, one-stop matching, for your free expansion of the ideal choice of reaction synthesis.

Here we provide various specifications of the reactor, the volume from 250 mL to 200L single and double decker.You can also customize different specifications of the reaction kettle according to your needs.

※ Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.

※ Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
When glass interlayer connecting to hot oil and been circulated, it can do heating reaction, connecting to refrigerating fluid can do low temperature reaction.

※ Enable reaction under normal temperature, that is connecting to tap water can take away the reaction heat quickly.
Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.

Product Model	PGR-30	PGR-50	PGR-80	PGR-100	PGR-150	PGR-200
Volume(L)	30	50	80	100	150	200
Neck No.on Cover	6	6	6	6	6	6
External Diameter of Inner Vessel(mm)	330	365	410	460	550	600
External Diameter of Outer Vessel(mm)	365	410	460	500	600	650
Cover Diameter(mm)	265	265	340	340	340	340
Vessel Height(mm)	730	850	950	950	980	1200
Motor Power(W)	140	140	250	250	400	750
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-600	50-600	50-600	50-600	50-600	50-600
Torque(Nm)	2.23	2.23	3.98	3.98	6.37	6.37
Power(V)	220	220	220	220	220	220
Dimension(mm)	7005002100	8006002300	10007002500	10007002700	12009003000	12009003200
