Name: Evaporator Heating Cooling Circulator , Heating Bath Circulator With Lockable Caster
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: GX-2005
Availability: InStock

Home Products Heating Cooling Circulator

Evaporator Heating Cooling Circulator , Heating Bath Circulator With Lockable Caster

Product Details:

Place of Origin:	NANTONG, CHINA
Brand Name:	Sanjing
Certification:	ISO9001
Model Number:	GX-2005

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	5 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Package:	Polywood Case
Temperature Range:	Rt~200℃	Voltage:	220V
Max Power:	2.6KW	Type:	New
Highlight:	polyscience refrigerated circulating baths , heating cooling circulator

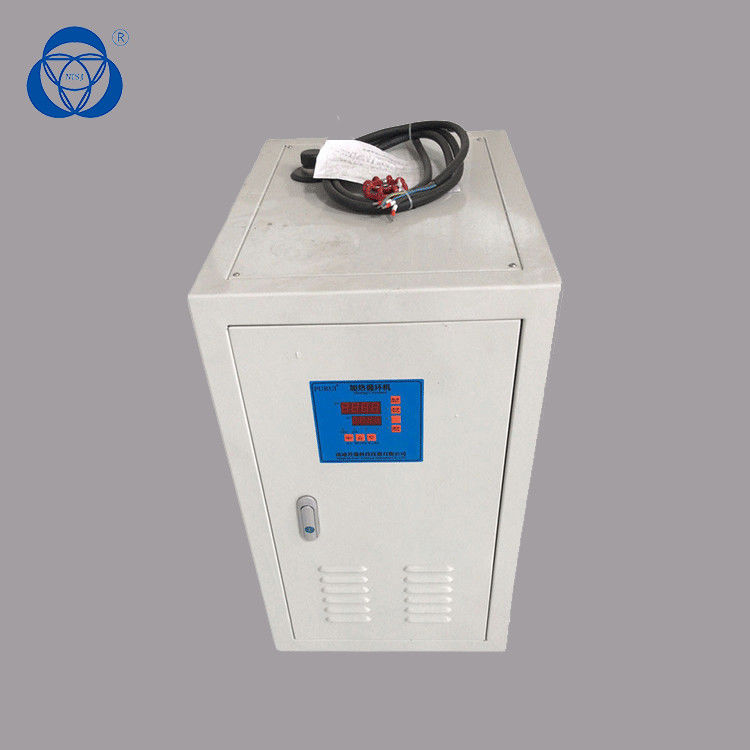

Main features of heating circulating oil bath

* a new generation of temperature control program is built in the high temperature circulating oil bath to ensure the stable

operation of the equipment.

* microcomputer intelligent control system, with rapid temperature rise, stable temperature and simple operation.

* water oil dual purpose: the accuracy of water bath is ± 0.1 ℃, and the accuracy of oil bath is ± 1 ℃.

* led dual window digital display temperature measurement value and temperature setting value respectively, convenient to touch the key.

* the flow of external circulation pump is large, up to 15L / min.

This product adopts 304 stainless steel plate as the liner and high qualified plastic sprayed cold rolled plate as the shell. There is a cotton insulation between oil bath shell and liner which has excellent thermal insulation effect. The special design of inlet of outlet of circulation liquid make the heat conducting oil form circulation in oil bath to ensure the temperature uniformity of oil and stability of temperature control.

It can be widely used in oil, physical, chemical, pharmaceutical, environmental protection and other fields of science, precision temperature control equipment.

High temperature circulating oil bath can be equipped with cold water circulating device, which can be connected with tap water to realize rapid cooling inside the system, and is suitable for temperature control of exothermic reaction under high temperature.

Application

Experiment that need heating and cooling, Fermentation Tank, Polarimeter, Refractometer, Spectrophotometer, Electrophoresis System,

Chromatographic Column, Viscometer, Rotation Evaporation Instrument, Rheometer.

Features

※ PID controller with precise temp control and small temp stamping.

※ Adopt solid relay to control the circuit without touch point and no spark to prolong the life.

※ Wide working temp range, the max temp range is Home Temp-200℃.

※ Controller with 2 double row of LED displays can show temp setting value and actual value at same .

※ Can select water cooling which can cool down quickly and solve the problem that the natural cooling time is too long.

Technical Parameter of Heating Circulator

Product Model	RX-05	RX-10/20/30	RX-50	RX-80/100	RX-150	RX-200
Temperature Range(℃)	Room Tem-200	Room Tem-200	Room Tem-200	Room Tem-200	Room Tem-200	Room Tem-200
Control Precision(℃)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Volume within Controlled Temperature(L)	2	5.5	5.5	5.5	8	8
Power(Kw)	2	3.5	5	7.5	9	12
Pump Flow(L/min)	40	40	40	40	56	56
Lift(m)	28	28	28	28	38	38
Dimension(mm)	510×300×600	590×420×700	590×420×700	550×650×900	550×650×900	550×650×900
Supporting Volume(L)	5	10/20/30	50	80/100	150	200
