Name: Heavy Residue Short Path Distillation Glassware , Vacuum Distillation Glassware
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-50
Availability: InStock

Home Products Glass Distillation Unit

Heavy Residue Short Path Distillation Glassware , Vacuum Distillation Glassware

Product Details:

Place of Origin:	CHINA
Brand Name:	NTSJ
Certification:	CE,ISO9001
Model Number:	FPGR-50

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Condition:	NEW	Process:	Rotary
Weight:	38KG	Warranty:	1 Year
Material:	Stainless Steel	Vacuum Degree:	0.098mpa
After-sales Service:	Rovided: Engineers Available To Service Machinery Overseas	Voltage:	220V/50Hz
Certification:	CE,ISO9001	Application:	Distillation
Highlight:	distillation glassware kit , short path distillation glassware

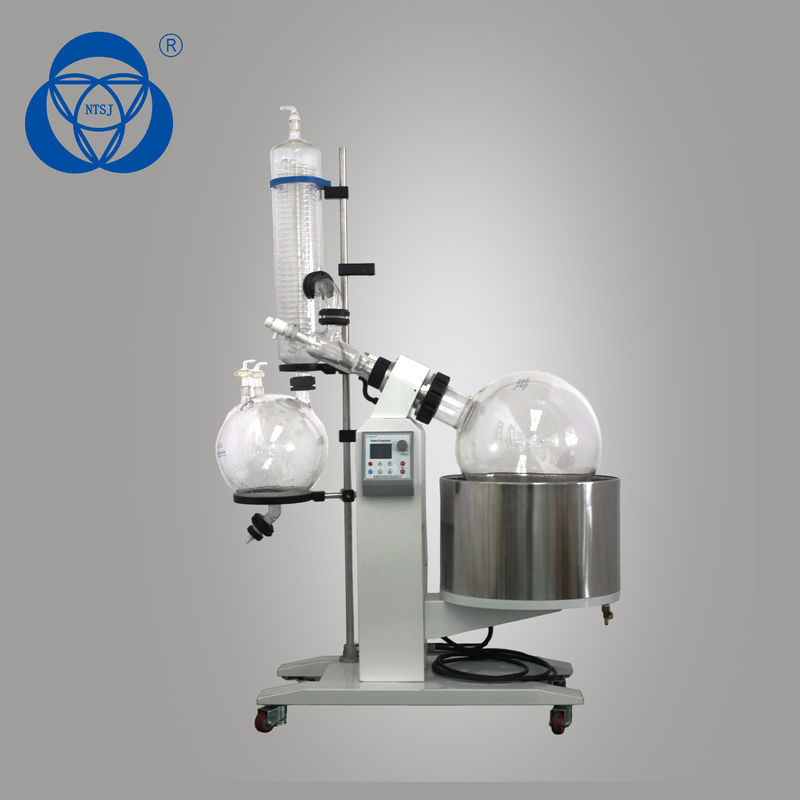

Chemical Lab Vacuum Rotary evaporator

Rotary evaporator is an necessary lab instrument mainly used for the evaporation, concentration, crystallization, drying, separation and solvent recovery in medicine, chemical engineering and biopharmacy industry. Rotary evaporator is developed from principle of thermostat heating makes thin film evaporate under vacuum negative pressure condition. Rotary evaporator use stepless speed regulation to rotate glass bottle in a constant speed, material forms a large area of balanced thin film in bottle wall, then the smart thermostat water bath heats the rotating bottle and conducts high speed evaporation under vacuum condition, solvent steam is cooled by high efficiency glass condenser and recycled to receiving bottle.

Short-Path Distillation
Model	SD-2	SD-5	SD-10	SD-20
Material	G3.3
Heating Capacity(ml)	2000	5000	1000	2000
Heating temperature(℃)	Room temperature -250
Accuracy(℃)	±1
Vaccuum Degree(Mpa)	0.098
Working temperature(℃)	5-40
Voltage	220V/50Hz or 110V/60Hz			380V/50Hz
Package Size	450450600	580580735	850850600
Weight	18	24	30

Features

1. Highly Chemical Resistance-All components that make contact with liquids and gases are made of borosilicate glass 3.3 and PTFE.

2. Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.

3. Downward-condensing vacuum connection design ensures safe vacuum operation

4. Modular design (individual rotary and water bath modules) for extremely easy maintenance and easy future upgrades

5. Easy auto lift with secure lock for the evaporating flask

6. Easy, straight-forward and visual operation with digital speed and temperature display

7. PID temperature controller ensures accurate temperature control is maintained

8. 1-way check valve automatically turns off when draining the receiving flask. The pressure inside evaporator won't be changed during draining.
