Name: High Precision Rotary Vacuum Evaporator Digital Converter Easy Installation
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-10
Availability: InStock

Home Products Rotary Vacuum Evaporator

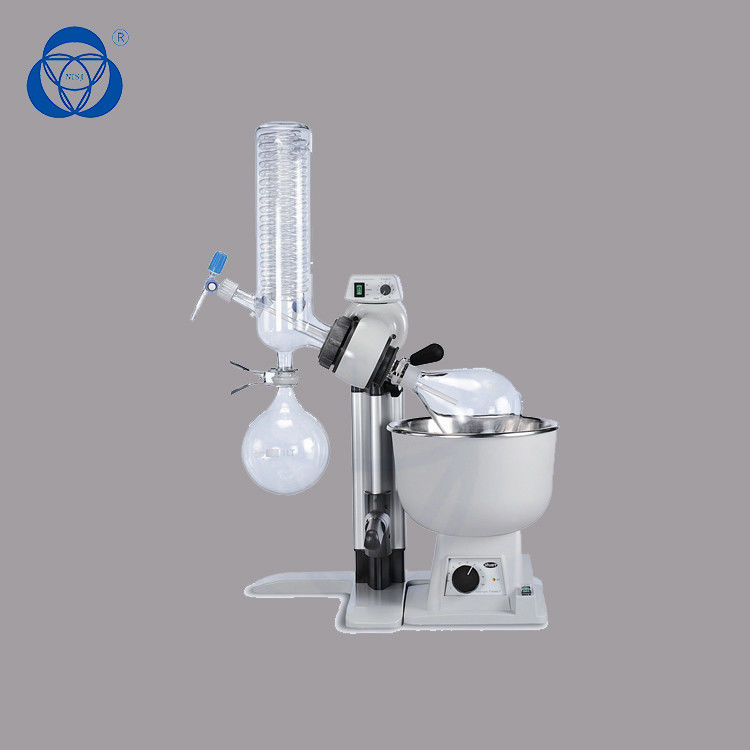

High Precision Rotary Vacuum Evaporator Digital Converter Easy Installation

Product Details:

Place of Origin:	CHINA, JIANGSU
Brand Name:	Sanjing
Certification:	CE,ISO9001
Model Number:	FPGR-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Collection Flask:	20L	Vacuum Degree:	0.098Mpa
Heat Bath Power:	7500W	Condition:	New
Dimension(lwh):	Capacity	Process:	Evaporator
Warranty:	12 Months	Power Source:	Electric
Highlight:	rotary evaporator distillation , rotary vacuum film evaporator

Part Description	Specification	Quantity
Round bottom flask for evaporation	10L, 3-neck, hand blown, 34/45	1
Short path distillation port	Vacuum Jacketed, 34/45	2
Screw thermometer inlet adapter	24/40	1
Thermometer inlet adapter	14/20	2
Distillation Cow Receiver 2	1-to-1, 24/40	2
Round Bottom Flask for receiving	2000ml, 1-neck, hand blown, 34/35	2
Glass Funnel	4" opening, 24/40	1
Keck Clamp 1	24/40, Stainless Steel	1
Keck Clamp 2	24/40, Plastic	6
Keck Clamp 1	34/45, Stainless Steel	2
Hexagonal glass bottle stopper	14/20	2
Hexagonal glass bottle stopper	24/40	1
Cork Ring Stand for Flask 2	1pc 110mm,1pc 160mm	4
Silecone tubing	8x14mm	1
Stainless steel lab jak	1pc 15x15cm,1pc 20x20cm	2
Glass termometer	300 degree	2
Sealing gasket for screw thermometer inlet adapter	24/40	10
Clamp holder		2
Lab support stand		1
3-prong condenser clamp		2
Glass T adaper	3/8''	2
Vacuum grease		1
1/2'' fiberglass insulating rope		10
Glass cold trap	T-20	1
Desktop precise heater/chiller	15L, -5 to 95 degree centigrade	1
Rotary vane oil pump	8.4CFM(4L/S), 2-stage, 220 V	1

A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from shapes a thin film in negative pressure condition by heating, evaporates, and then the vapor condensed, liquefied, and recollected for separation. We can provide the whole solution for rotary evaporator, including supporting equipment, like the circulating chiller and vacuum pump.

Rotary evaporator

An ( Explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.

Application

1. An ( explosion-proof ) rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.

2. An ( explosion-proof ) rotary evaporator can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.
