High Vacuum Pressure Molecular Distillation Equipment Machine Unit Toxicity Avoid

Product Details:

Place of Origin:	NANTONG,CHINA
Brand Name:	Sanjing
Certification:	ISO9001
Model Number:	Short path distillation kit

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Operation Temperature::	Up To 200 ℃	Constant Pressure Feeding Funnel Volume::	2L
Condition:	New	Product Name:	Molecular Distillation
Power Source:	Electric	Weight:	As Design
Highlight:	chemistry distillation kit , distillation apparatus kit

Molecular distillation process description

Feed liquid is admitted into still under high vacuum, immediately spread into a very thin film and forced quickly down the evaporation surface. Heated walls and high vacuum drive the more volatile components (distillate) to the external condenser as the less volatile components (residue) continue down the cylinder. The resulting fractions, thus separated, exit through individual discharge outlets. Depending on application, the desired product is either the distillate or the residue fraction. Small amounts of condensable low MW compounds collect in cold trap upstream of vacuum system. For high solvent loads, an optional external condenser may be installed immediately downstream of the still.

Molecular distillation is considered as the safest mode of separation and to purify the thermally unstable molecules and related compounds with low volatility and elevated boiling point. One example is that, Molecular Distillation is applied for creating a high value clear distillate from Plant Oil Concentrates, for example, refine hemp concentrates into a golden clear distillate that can be infused into a variety of edible products or fine oils to be used in vape cartridges or other products.

Model	SJ-10	SJ-20	SJ-50	SJ-100	SJ-150	SJ-200	SJ-300	SJ-500
Evaporation Area m2	0.1	0.2	0.5	1	1.5	2	3	5
Feeding Rate L/h	1-15	5-25	10-60	50-120	60-180	100-200	100-300	200-500
Feeding Method	High-precision gear pump
Receiving Method	Continuous discharge pump
Equipment Height(mm)	2100	2650	3100	4250	4500	5000	6200	7500
Max Speed(rpm)	50-350
Operation Temperature	Up to 350C
Vacuum Level(mbar)	Low to 0.001 mbar
Feeding Mode	Gear pump for automatic and continuous feeding
Collection Mode	Gear pump for automatic and continuous collection

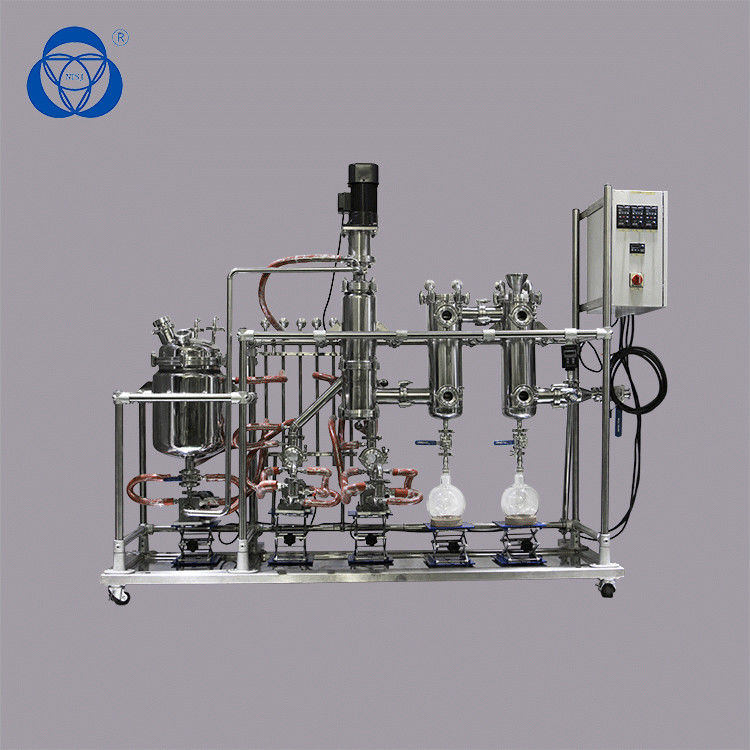

Turnkey Solution for Stainless Steel Molecular Distillation
1	Jacketed feeding vessel with sight glass
2	Feed pump for automatic and continuous feeding
3	Motor to drive rotation with mechanical sealing (Optional: Magnetic sealing)
4	Jacketed evaporator with internal condenser

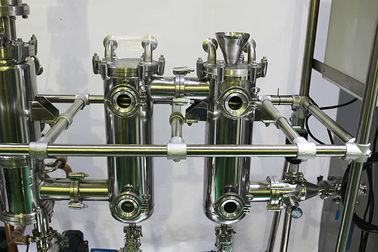

5	Coils cold trap with sight glass
6	Collection pump(Distillate)for automatic and continuous collection
7	Collection pump (Residue) for automatic and continuous collection

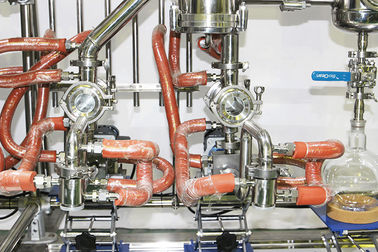

8	Full jacketed pipe (feeding and collection section)
9	Control cabinet
10	Heating circulator for feeding vessel and pipeline
11	Heating circulator for jacketed evaporator
12	Heating circulator for reside collection section
13	Heating & cooling Circulator for internal condenser and distillate collection section
14	Cooling circulator for cold trap
15	Rotary vane vacuum pump
16	Molecular pump (Optional: Diffusion Pump)
