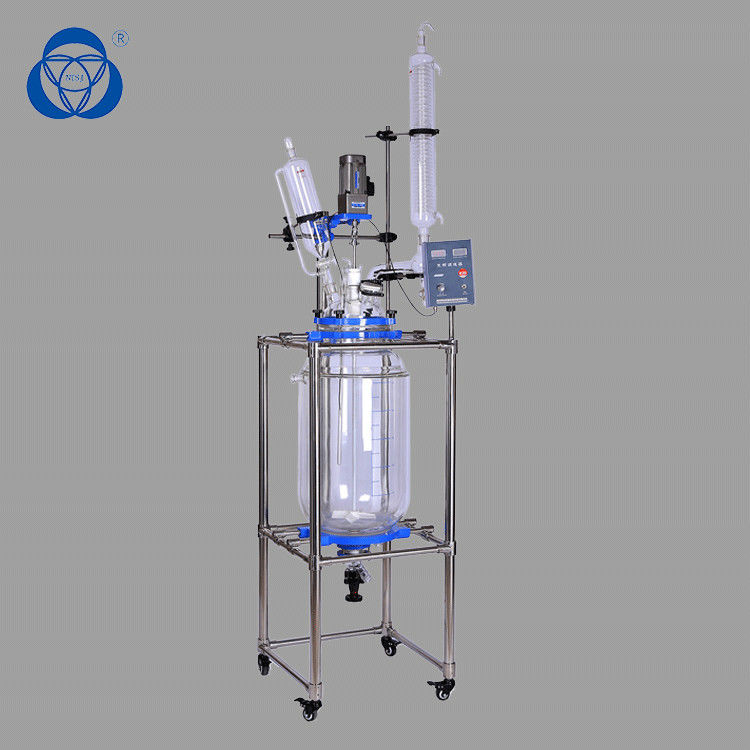

Large Cooling Surface Borosilicate Glass Reactor , Double Jacketed Glass Reactor

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.

1. Machine has a 304 stainless steel frame and moveable design. There are at least 5 preformed holes on the lid, which can help processing of liquid recycling, flowing in, temperature measuring, liquid adding, etc.
2. Main reactor body is made by G3.3 borosilicate glass. It can support chemical reaction temperature from -120 to 300 centigrade.
3. Glass reactor can work under vacuum and constant pressure. In quiescent state, vacuum rate of its inner space can reach -0.098MPa.
4. Stirring hole of the lid will be sealed by alloy steel mechanical sealing part. Connector is adopted PTFE material. Both of them will guarantee the vacuum rate of reactor inside space.
5. PT100 temperature sensor, which is a high precision temperature measuring tool.

Our factory

Nantong Sanjing Chemglass Co . Ltd's main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products which are widely used in pharmaceuticals , chemicals , biological pharmacy , new materials , noble metals and other files , meanwhile .

Our service

Customizable
1. How long is your delivery time?
Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.
2. How to choose suitable equipment ?
tell us your work flow and requirements ,then we will recommend you suitable equipment according to your requirements, application experience and feedback from our clients.
3. How to solve the equipment trouble during using ?
Please email us about problem with pictures or a small video,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
