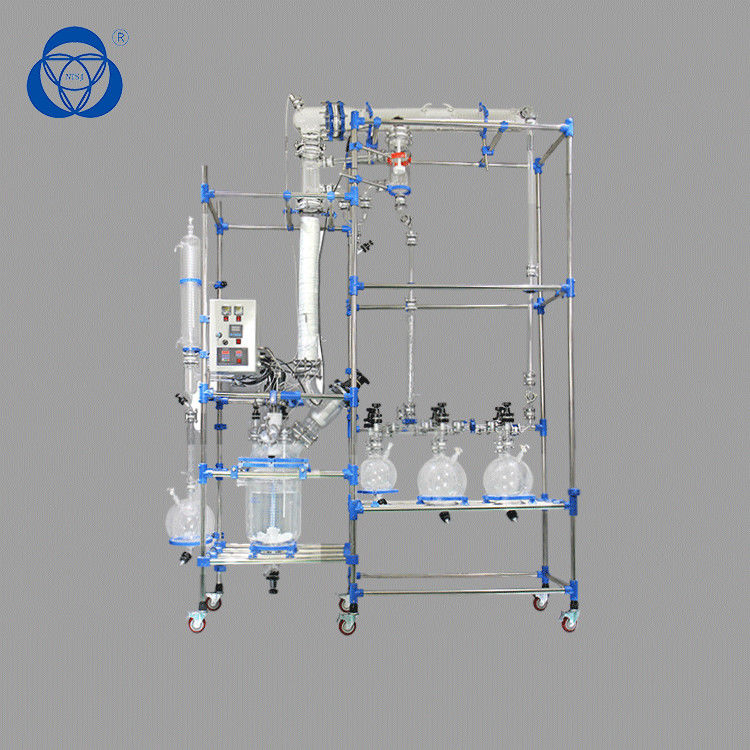

Name: Low Fouling Molecular Distillation Equipment Reduced Thermal Decomposition Losses
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: Short path distillation kit
Availability: InStock

Home Products Molecular Distillation Equipment

Low Fouling Molecular Distillation Equipment Reduced Thermal Decomposition Losses

Product Details:

Place of Origin:	NANTONG,CHINA
Brand Name:	NTSJ
Certification:	ISO9001
Model Number:	Short path distillation kit

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Flow:	10L~50L/H	Material Tank:	2 Sight Glass At Top, With Insulated Ball Valve
Voltage:	220V	Dimension(lwh):	As Designed
After-sales Service Provided:	Online Support	Process:	Vacuum Distillation
Power Source:	Electric	Warranty:	1 Warranty
Product Name:	Molecular Distillation	Feature:	Customizable
Highlight:	essential oil distillation kit , distillation apparatus kit

Model	MD-80	MD-100	MD-150	MD-200
Feed Rate(kg/hr)	1.0-20	1.5-30	2.5-40	3.5-70
Estimate Throughput at End of 8-10 hr/day for CBD (kg)	8	12	20	28
Effective Evaporationn Area(m2)	0.1	0.15	0.25	0.35
Motor Power (W)	120	120	120	120
Maximum Speed(rpm)	350	350	350	350
Barrel Diameter (mm)	80	100	150	200
Feeding Funel Volume( L)	1	2	3	5
Dimension(DXWXH mm)	2120X1740X628	2120X1740X628	2270X1940X628	2420x2040x628
Internal Condenser Area(m)	0.2	0.3	0.4	0.5
Jacketed Feeding Vessel Volume ( L)	1	2	3	5
Distillate Receiving Vessel Volume(L)	1	2	5	5
Residue Receiving Vessel Volume(L)	1	1	3	5
Wiper	PTFE scraper	PTFE scraper	PTFE scraper	PTFE scraper

Molecular Distillation is a special liquid-liquid separation technology, which is different from the traditional distillation by boiling point difference separation principle,but by different substances molecular movement of the average free path difference to achieve separation. Molecular distillation is considered as the safest mode of separation and to purify the thermally unstable molecules and related compounds with low volatility and elevated boiling point. The process distinguishes the short residence time in the zone of the molecular evaporator exposed to heat and low operating temperature due to vacuum in the space of distillation.

Stainless steel molecular distillation unit is a high efficient apparatus for distillation of plant oil concentrates with faster evaporation efficiency. Moreover, it is durable in use and available for cascade design.

It is a stilling method under high vacuum. The average free path of steam molecular is less than the distance between evaporating surface and condensing surface. Components in the mixing liquid will be separated according to different evaporating rate. It is a special liquid-liquid separating technology. Its working principle is advanced more than traditional boiling point separating method. Supporting by this technology, our SPD series short path molecular distillation device is a high efficient plant essential oil refining equipment. It can help you get highly purified essential oil.

Molecular distillation system is composed of high borosilicate glass 3.3, stainless steel and PTFE, so it has excellent anti-corrosion ability.Features

The main part of the molecular distillation system is made of high borosilicate glass 3.3, and the whole operation process can be well observed.
The high precision distillation cylinder body enables the liquid to form a complete integrated film on the heating surface.The inner wall of the barrel body is smooth and bright, not easy to stick to the material and scaling.
imported brand variable frequency speed reduction motor,safe and reliable in operation;equipped with self-cooling fan,it can continuous working for a long time.

Customizable

Low Fouling Molecular Distillation Equipment Reduced Thermal Decomposition Losses

OUR FACTORY

Low Fouling Molecular Distillation Equipment Reduced Thermal Decomposition Losses

We are located in Nantong City, 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.

SHIPPING AND PACKAGE

Wooden box with sufficient inner protection for short path distillation unit; Besides,will buy insurance for every shipment by sea or by air.

Low Fouling Molecular Distillation Equipment Reduced Thermal Decomposition Losses

Service

Customizable

1 year complimentary warranty

Training how to install the machine and how to
operate

Free lifetime maintenance service and 24-hour
technical support

Reliable quality and thoughtful after sale service
