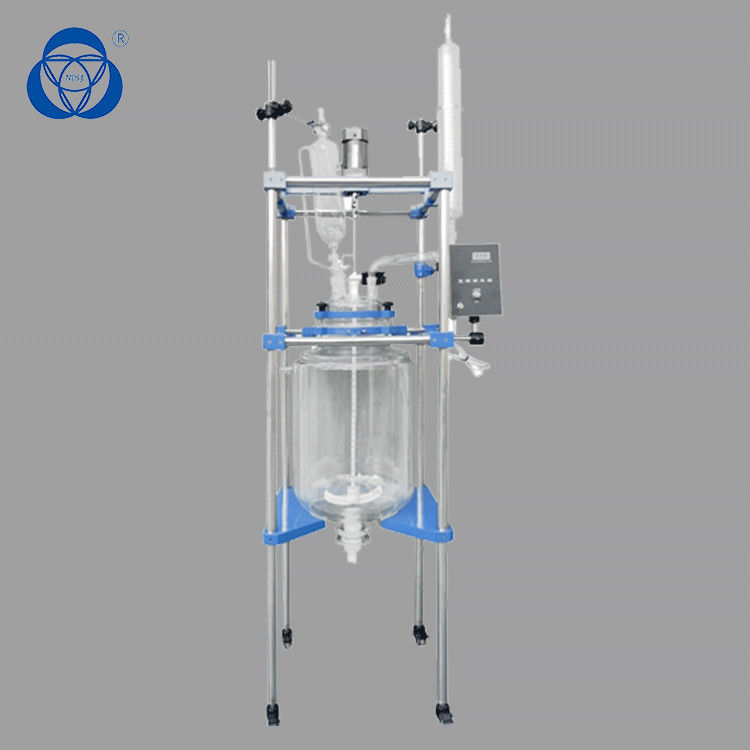

Name: Pharmaceutical Jacketed Glass Vessel , Double Layer Glass Reactor Easy Discharge Material
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-50
Availability: InStock

Home Products Jacketed Glass Vessel

Pharmaceutical Jacketed Glass Vessel , Double Layer Glass Reactor Easy Discharge Material

Product Details:

Place of Origin:	CHINA
Brand Name:	NTSJ
Certification:	CE,ISO9001
Model Number:	FPGR-50

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Dimension(lwh):	Ordered Equipment	Weight:	68kg ~ 190kg
Certification:	CE,ISO9001	Automatic Grade:	Semi-Automatic
Application:	Lab Stirring, Distillation	Warranty:	One Year
Vacuum Degree:	-0.098mpa	Voltage:	220V
Pipe Fitting Material:	304 Stainless Steel
Highlight:	high pressure glass reactor , borosilicate glass reactor

Mixing motor

* Adopt deceleration motor to increase torque.

* Good stability and long service life.

Mixing parts

* Use seal

* Stainless steel coated impeller

* Non-polluting material

Reactor holder

* Frame structure design.

* Quality stainless steel.

* Three aluminum fasteners.

Digital converter

* Variable frequency governor,digital speeddispaly.

* Temperature dispaly.

* PT100 temperature sensor.

Reaction vessel commonly used in biochemical,modern fine chemical,pharmaceutical,scientific experiments and other industries. Reaction vessel can do concentration,distillation,reflow,separation,purification reaction in the condition of constant speed,constant force,constant temperature.We can design under your requirements.

Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.
Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
When glass interlayer connecting to hot oil and been circulated, it can do heating reaction, connecting to refrigerating fluid can do low temperature reaction.
Enable reaction under normal temperature, that is connecting to tap water can take away the reaction heat quickly.
Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.
The inner core of stirring rod is made from 321 stainless steel, strengthened anti-corrosion property, military technology makes workmanship more exquisite, operation with high proficiency.

Product Model

Volume(L)

Neck No.on Cover

External
Diameter of
inner Vessel(mm)

External
Diameter of
outer Vessel(mm)

Cover Diameter

Vessel Height(mm)

Motor Power(w)

Vacuum Degree(Mpa)

Rotation
Speed(rpm)

Torque(Nm)

Power(V)

Dimension(mm)

PGR-3
3
4
150
200
150
300
40
0.098
50-1400
0.27
220
320350900

PGR-10
10
6
230
265
450
140
0.098
50-600
2.23
220
6506501900

PGR-50
50
6
365
410
265
850
140
0.098
50-600
2.23
220
8006002300

PGR-100
100
6
460
500
340
950
250
0.098
50-600
3.98
220
10007002700

PGR-200
200
6
600
650
340
1200
750
0.098
50-600
6.37
220
12009003200

Product Details

Pharmaceutical Jacketed Glass Vessel , Double Layer Glass Reactor Easy Discharge Material

Packing and delivery

Glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases
Both neutral and customized packaging can be available.

We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.

Pharmaceutical Jacketed Glass Vessel , Double Layer Glass Reactor Easy Discharge Material

Our factory

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.
