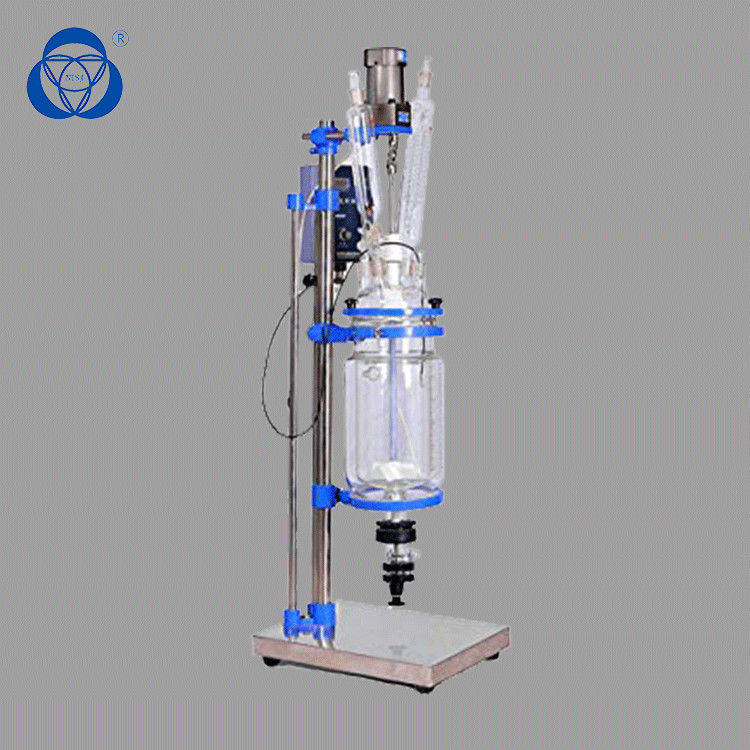

Name: PTFE Material Stirrer Jacketed Glass Reactor , Double Layer Glass Reactor Explosion Proof
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-3
Availability: InStock

Home Products High Pressure Glass Reactor

PTFE Material Stirrer Jacketed Glass Reactor , Double Layer Glass Reactor Explosion Proof

Product Details:

Place of Origin:	CHINA
Brand Name:	NTSJ
Certification:	CE,ISO9001
Model Number:	FPGR-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Stirring Power:	120W	Frame Material::	304 Stainless Steel Frame
Sealing Type:	Mechanical Seal	Warranty:	12 Months
Application:	New Material Synthesis	After-sales Service Provided:	Video Technical Support、Field Maintenance And Repair Service
Condition:	New	Type:	Reaction Kettle
Highlight:	borosilicate glass reactor , single layer glass reactor

* All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.

* Wide range of temperature operations, from -80℃ to 380℃.

* Large condenser cooling surface for exceptional condensation performance.

* Reduction mixing motor, adjustable stirring rate provides great torque or high speed.

* Heavy duty stainless steel supporting framework with lockable casters for mobility and stability.

* The glass lid comes with 6 ports for maximized flexibility in operation (ports for stirring, thermowell, funnel, condenser, powder inlet & vacuum valve).

* High acid and alkali resistant, high temp. resistant, high strengh and hardness

The Glass Reactor is a generic term for a type of vessel widely used in the process industries. It is used for a variety of process operations,such as dissolution of solids, product mixing, chemical reactions, batch distillation, crystallization, extraction and polymerization.

The advantages of the glass reactor lie with its versatility and visibility.A single vessel system can carry out a sequence of different operations without the need to break containment which is useful when processing toxic or highly potent compounds.

A typical glass reactor consists of a glass vessel with an agitator and integral heating/cooling system. The borosilicate glass vessels come with sizes from 1L up to 100L. Liquids or solids are feed via connections at the top cover of the reactor. Vapors are discharged through the connections at the top and the wastes are usually discharged out from the bottom.

This system can be modified in our own factory quickly in case any customization is needed from us (dimension, motor power, explosion proof, additional glassware, custom port size, etc). Please contact us if any further details are needed.

Product Model	PGR-3	PGR-5	PGR-10	PGR-30	PGR-50	PGR-100	PGR-200
Volume(L)	3	5	10	30	50	100	200
Neck No.on Cover	4	5	6	6	6	6	6
External Diameter of Inner Vessel(mm)	150	180	230	330	365	460	600
External Diameter of Outer Vessel(mm)	200	230	290	365	410	500	650
Cover Diameter(mm)	150	180	265	265	265	340	340
Vessel Height(mm)	300	400	450	730	850	950	1200
Motor Power(W)	40	60	140	140	140	250	750
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-1400	50-600	50-600	50-600	50-600	50-600	50-600
Torque(Nm)	0.27	0.95	2.23	2.23	2.23	3.98	6.37
Power(V)	220	220	220	220	220	220	220
Dimension(mm)	320350900	4504501200	6506501900	7005002100	8006002300	10007002700	12009003200

Main features

1.It adopts AC frequency control of motor speed So the rev is steady , no spark appear,wide moment, safe, and can be used as the constant working.
2.It is double-layer jacketed structure. The thickness of the glass is 5-7 mm with good chemical and physical properties.
3. The teflon components sealing method makes it in a state of high vacuum ,anti-acid and anti-alkali.
4. It can work under the ordinary pressure and negative pressure and can reach the -0.098Mpa positive pressure.
5. The real time temperaturanzeige
