Name: Short Residence Time Distillation Apparatus Kit , Chemistry Distillation Kit
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: Short path distillation kit
Availability: InStock

Home Products Molecular Distillation Equipment

Short Residence Time Distillation Apparatus Kit , Chemistry Distillation Kit

Product Details:

Place of Origin:	NANTONG,CHINA
Brand Name:	NTSJ
Certification:	ISO9001
Model Number:	Short path distillation kit

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Fram Material:	SUS304	Maximum Speed (rpm):	500
Feed Rate(g/h):	1500~3000	Dimension(lwh):	As Designed
Sealing:	Main PTFE Seal	Power Source:	Electric
Certification:	CE ISO . Etc	Vacuum Degree:	0.098 Mpa
Application:	Distillation
Highlight:	essential oil distillation kit , distillation apparatus kit

Feeding system

* Apply constant pressure dropping funnel

* Multiple entry of material

* High borosilicate glass 3.3

* Feed insulation system available

Jacketed evaporation barrel with internal condenser

* Made of high borosilicate glass 3.3 easy for viewing

* PTFE blades, which is high temp resistance and anti-corrosive

Cold trap

* The main components are fabricated in Borosilicate glass to enable observation of product properties like foaming, fouling and film distribution on the heated shell during molecular distillation.

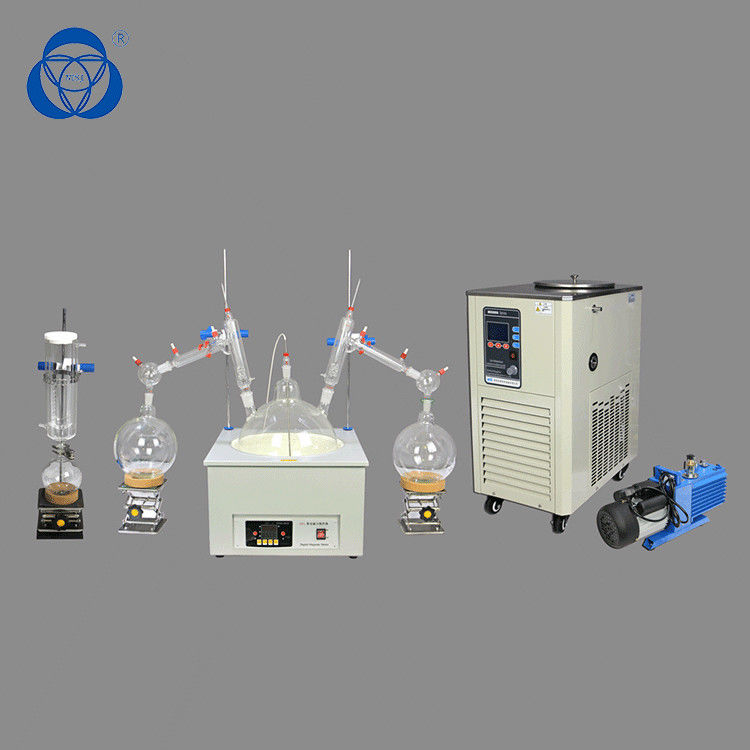

The Short Path Distillation with Vacuum Pump Heating System is an economical bench top-scale short path distillation kit, specifically assembled to compete with low-budget market options. When trying to separate compounds having a complete turn-key system which includes all stands, clamps, hoses, connectors, and accessories necessary to perform distillations efficiently and with ease is of importance.

Advantages of Short Path Distillation:
The advantage is that the heating temperature can be considerably lower (at reduced pressure) than the boiling point of the liquid at standard pressure, and the distillate only has to travel a short distance before condensing. A short path ensures that little compound is lost on the sides of the apparatus.

Model	MD-80	MD-100	MD-150	MD-200
Feed Rate(kg/hr)	1.0-20	1.5-30	2.5-40	3.5-70
Estimate Throughput at End of 8-10 hr/day for CBD (kg)	8	12	20	28
Effective Evaporationn Area(m2)	0.1	0.15	0.25	0.35
Motor Power (W)	120	120	120	120
Maximum Speed(rpm)	350	350	350	350
Barrel Diameter (mm)	80	100	150	200
Feeding Funel Volume( L)	1	2	3	5
Dimension(DXWXH mm)	2120X1740X628	2120X1740X628	2270X1940X628	2420x2040x628
Internal Condenser Area(m)	0.2	0.3	0.4	0.5
Jacketed Feeding Vessel Volume ( L)	1	2	3	5
Distillate Receiving Vessel Volume(L)	1	2	5	5
Residue Receiving Vessel Volume(L)	1	1	3	5
Wiper	PTFE scraper	PTFE scraper	PTFE scraper	PTFE scraper

Features

The cold trap protects the vacuum pump from contamination and damage of vapors
For organic chemistry labs, distillation, fractional distillation, separation, purification, and synthesis
Vacuum-jacketed distillation adaptor
It's under vacuum conditions, through constant heating
All flasks are made of 3.3 borosilicate glass
