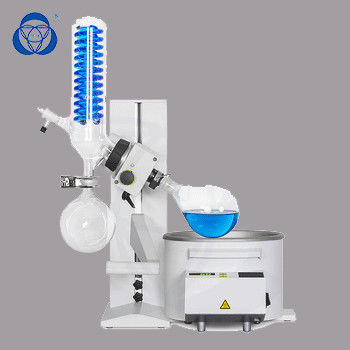

Name: Sparkless Motor Rotary Vacuum Evaporator Simple Counterb Alanced Lift Mechanism
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-5
Availability: InStock

Home Products Rotary Vacuum Evaporator

Sparkless Motor Rotary Vacuum Evaporator Simple Counterb Alanced Lift Mechanism

Product Details:

Place of Origin:	CHINA, JIANGSU
Brand Name:	Sanjing
Certification:	CE,ISO9001
Model Number:	FPGR-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Evaporation Rate(H2O):	>1.5L/h	Condenser:	Vertical Double Condenser
Lifting Mode:	Water(Oil) Bath Mannal Lifting	Rotary Flask:	Customized Size
Warranty:	1 Year	Power Source:	Electric
Dimension(lwh):	Capacity	Process:	Vacuum Distillation
Highlight:	rotary evaporator distillation , rotary vacuum film evaporator

The rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It mainly used in medicine, chemical engineering, biopharmacy industries for the concentration, crystallization, drying, separation and solvent recovery, especially suitable for concentrate and purify high temperature easily decomposed material.The rotary evaporator has advantages of large contact area, high evaporation efficient, easy to handle, low noise, good sealing performance.

Rotary evaporators feature a simple and reliable modular design, making it one of the most reliable rotary evaporators in industry. Their open and straight-forward structure also makes them extremely easy to maintain and repair. Moreover, these evaporators are designed with various safety features (dry-heating shut off, over temperature protection, soft start of rotation, over-current protection). We are able to customize the system to air-driven motor and steam-heated bath, which totally eliminate risks from electrical sparks.

The main components of a rotary evaporator are:
1. A motor unit that rotates the evaporation flask or vial containing the user's sample.
2. A vapor duct that is the axis for sample rotation, and is a vacuum-tight conduit for the vapor being drawn off the sample.
3. A vacuum system, to substantially reduce the pressure within the evaporator system.
4. A heated fluid bath (generally water) to heat the sample.
5. A condenser with either a coil passing coolant, or a "cold finger" into which coolant mixtures such as dry ice and acetone are placed.
6. A condensate-collecting flask at the bottom of the condenser, to catch the distilling solvent after it re-condenses.
7. A mechanical or motorized mechanism to quickly lift the evaporation flask from the heating bath.

Product model	FPR-2	FPR-5	FPR-10	FPR-20	FPR-50	FPR-100
Evaporation Flask(L)	2L	5L	10L	20L	50L	100L
Receiving Flask(L)	1L	2L/3L	5L/50#	10L+5L	10L+10L	20L+30L
Motor Power(W)	40	90	120	120	180	370
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	10-180	10-90	5-100	5-110	5-110	5-110
Evaporation Speed(L/h)	1.2	2	3.5	5	8	15-18
Power(V)	220	220	220	220	220	220
Dimension(CM)	55×35×75	55×35×110	55×35×110	110×70×200	120×80×220	170×83×280

Features

1.All the wetted components are made of high quality boro 3.3 glass and PTFE, for excellent corrosion resistance.
2.High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).
3.Modular and straight-forward structure for extremely easy maintenance.
4.High torque motor, high precision worm-gear gearbox and hand lift components for years of quiet and reliable operations.
5.Easy and straight forward operation of speed and temperature controller.
6.1-year hassle-free warranty and life-long parts and phone support.
