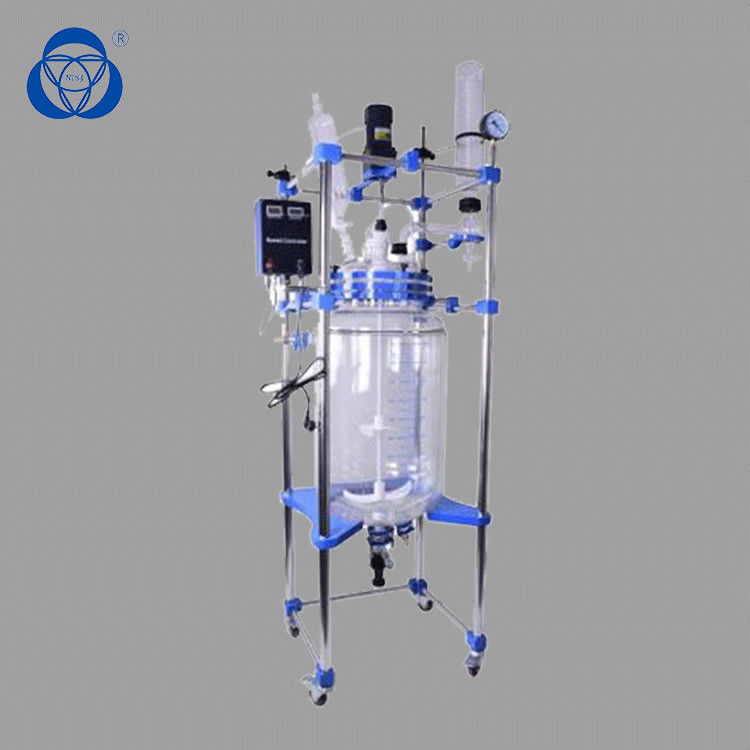

Uniform Exchange High Pressure Glass Reactor Heating Chilling Function Customizable

Product Details:

Place of Origin:	Nantong, China
Brand Name:	NTSJ
Certification:	ISO9001
Model Number:	PGR-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Polywood Case
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100SETS/MONTH

Contact Now

Detailed Product Description

Glass Material:	GG17 High-borosilicate Glass	Stirring Shaft Diameter::	12mm
Voltage:	220V	Material:	Borosilicate Glass
Lid Diameter:	265MM	Explosion Proof::	Optional
Highlight:	borosilicate glass reactor , single layer glass reactor

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties

2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.

3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.

In chemical engineering, a jacketed vessel is a container that is designed for controlling temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. Agitation can be also used in jacketed vessels to improve the homogeneity of the fluid properties (such as temperature or concentration)

Main features

1. Full set of glass part is produced by G3.3 borosilicate glass, owning excellent chemical and physical properties.

2.Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.
3. Enable react under normal temperature, tap water connected can take away the reaction heat quickly.
4. Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.
5. Main body is made from stainless steel, which is anti-corrosion.
6. Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
7. Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.

Packing and delivery

Packaging
- Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases;
- Both neutral and customized packaging can be available.
Shipping
- By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.

Our factory

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Our service

1. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.

2.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.

3. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
4. The period, scope and condition of the warranty.
(1) We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2) The damage caused by the transportation problem shall be borne by the seller.
