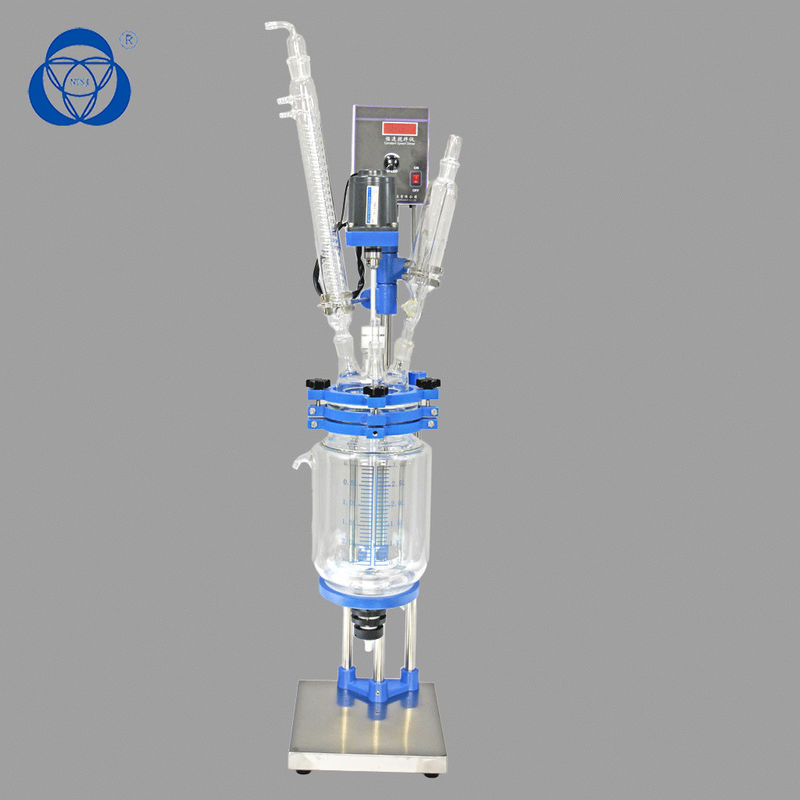

Name: Universal Joint High Pressure Glass Reactor Dual Layer Kettle With 6 Ports
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-3
Availability: InStock

Home Products High Pressure Glass Reactor

Universal Joint High Pressure Glass Reactor Dual Layer Kettle With 6 Ports

Product Details:

Place of Origin:	CHINA
Brand Name:	NTSJ
Certification:	CE,ISO9001
Model Number:	FPGR-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Speed (r/min):	10-680	Motor Power:	370W
Inside/outside Tube Dia::	600*550	Certification:	CE
Type:	Reaction Kettle	Application:	New Material Synthesis
Warranty:	12 Months
Highlight:	double jacketed glass reactor , borosilicate glass reactor

Key Features of laboratory reaction vessel agitated/stirrer jacketed glass reactor

1. Three layers glass reactor using VVVF, AC Induction Motor. Speed constant, no brush, no sparks, security stable, continuous working.

2. Complete glass reactor adopt GG17 high borosilicate glass production good chemical, physical properties.

3. Glass interlayer Interface communication on hot oil through cycle do Heating Reaction, Tung on cryoprotectants can be hypothermia reaction.

4. Can normal temperature reaction, pass last tap namely quickly will reflect heat away.

5. Decentralization material mouth with flange mouth and PTFE valve, container no dead corner detachable easy solid materials outfeed.

6. 5 reactor lid, large mouth design easy clean standard mouth socket selectable assembly reflux, distillation synthesis device

Double layers glass reactor three glass design, inner into reaction menstruum do stirring reaction, interlayer can pass different cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction. Setting thermostat conditions, in confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals and new materials synthesized ideal test production equipment.

Double-layer glass reactor vessel is made according to customers actual requirements and new standards. It absorbs the advantages of similar products at home and broad, and also makes a bold innovation. At the same time, the products have the characteristics: easy to use(one person moving, operating, cleaning, installing, unloading); novel and practical structure; beautiful appearance; leading domestic. It is an ideal instrument for modern chemistry, fine chemicals, bio-pharmaceuticals, new materials synthesis, test, and production.

Product Model	PGR-3	PGR-5	PGR-10	PGR-30	PGR-50	PGR-100	PGR-200
Volume(L)	3	5	10	30	50	100	200
Neck No.on Cover	4	5	6	6	6	6	6
External Diameter of Inner Vessel(mm)	150	180	230	330	365	460	600
External Diameter of Outer Vessel(mm)	200	230	290	365	410	500	650
Cover Diameter(mm)	150	180	265	265	265	340	340
Vessel Height(mm)	300	400	450	730	850	950	1200
Motor Power(W)	40	60	140	140	140	250	750
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-1400	50-600	50-600	50-600	50-600	50-600	50-600
Torque(Nm)	0.27	0.95	2.23	2.23	2.23	3.98	6.37
Power(V)	220	220	220	220	220	220	220
Dimension(mm)	320350900	4504501200	6506501900	7005002100	8006002300	10007002700	12009003200

Main features

1. Enable react under normal temperature, tap water connected can take away the reaction heat quickly.
2. Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
3. Main body is made from stainless steel, which is anti-corrosion.
4. Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.
5. Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.

Customizable

Product Details

Universal Joint High Pressure Glass Reactor Dual Layer Kettle With 6 Ports
