Name: Vacuum Borosilicate Glass Reactor , Glass Chemical Reactor Separately Kettle Cover
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-20
Availability: InStock

Home Products Borosilicate Glass Reactor

Vacuum Borosilicate Glass Reactor , Glass Chemical Reactor Separately Kettle Cover

Product Details:

Place of Origin:	NANTONG,CHINA
Brand Name:	NTSJ
Certification:	ISO9001
Model Number:	FPGR-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	5 working after receive your payment
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Material:	3.3 Borosilicate Glass	Explosion Poof Or Not:	Yes
Power Source:	Electric	Application:	For Laboratory
Voltage:	220V	Frame Part:	SS316 Or SS304 Spray Teflon
Highlight:	glass pressure reactor , double layer glass reactor

Features:

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties.

2. Limit temperature of 250C for high temperature experiments,and limit temperature of -60C for low temperature experiments.

3. Titanium ring,new titanium alloy mechanical seal,sealing 0.098Mpa.

4. The PT100 temperature,and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control,AC induction motor.Constant speed,brushless,no spark,security and stability,and continuous work,

6.Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

7.The bottom flanged discharge port with a PTFE value,aluminum parts flange fixed container no dear ends.

Glass Reactor are available in Cylindrical Shape from 1 to 500 liter capacity. Cylindrical vessels can be supplied with metal/glass jackets .

We have a variety of vessel option to choose from our standard range. Beside the manufacturing of our Standard Vessels / Rectors, we specialize in producing reactors as per customer's requirement. We can fabricate the reactor as per drawing or picture.

Frame Material	304 SUS	304 SUS	304 SUS	304 SUS
Reaction bottle capacity	1L	2L	3L	5L
Jacketed Capacity	0.4L	0.5L	0.6L	0.8L
Flanged out of the oil circulation port	Low feed high outlet	Low feed high outlet	Low feed high outlet	Low feed high outlet
Reaction bottle cover	5	5	5	5
Discharger port distance to ground	30mm	30mm	30mm	30mm
Temp. range	-80-250℃	-80-250℃	-80-250℃	-80-250℃
Vacuum degreee	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa
Stirring speed	0-1100rpm	0-1100rpm	0-1100rpm	0-1100rpm
Stirring diameter	8mm	8mm	8mm	8mm
Stirring power	40W	40W	90W	90W
Coltage(V/Hz)	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
Dimension(mm)	3503451000	3503451000	3504101250	3504101250
Plate size(mm)	325*345	325*345	325*410	325*410
Packign size(mm)	1200480400	1200480400	1380500400	1380500400
Packign weight(KG)	32	32	38	38

Main features

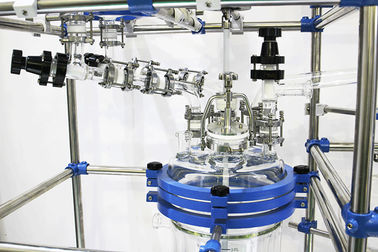

1) flange type stirring neck in middle, equipped with ceramic mechanical seal, resist to high and low temperature and corrosion, ensure it can be highly accurately sealed in poor conditions.stainless steel stirring rod which is covered with PTFE outside, and paddle is fully made of PTFE, which is suitable for mixing of all kinds of materials.

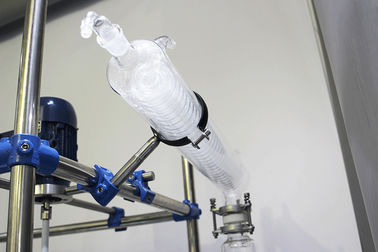

2) flange type vapor neck in the left rear is equipped with coil condenser, water separator and receiving bottle for reflux and distillation.
discharging valve is used for bottom discharge, ensure there is no dead angles and complete discharge.

Packing and delivery

We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.
We can also arrange global shipment as clients' requirements.

Our factory

We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai.

Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.
