Name: Vacuum Glass Reactor Vessel , High Pressure Glass Reactor Excellent Tightness
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-20
Availability: InStock

Home Products Glass Reactor Vessel

Vacuum Glass Reactor Vessel , High Pressure Glass Reactor Excellent Tightness

Product Details:

Place of Origin:	NANTONG,CHINA
Brand Name:	Sanjing
Certification:	ISO9001
Model Number:	FPGR-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	5 working after receive your payment
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Frame Part:	SS316 Or SS304 Spray Teflon	Size:	Customers' Requests
Explosion Poof Or Not:	Yes	Feature:	Customizable
Voltage:	220V	Motor Power:	180W
Highlight:	lab glass reactor , borosilicate glass reactor

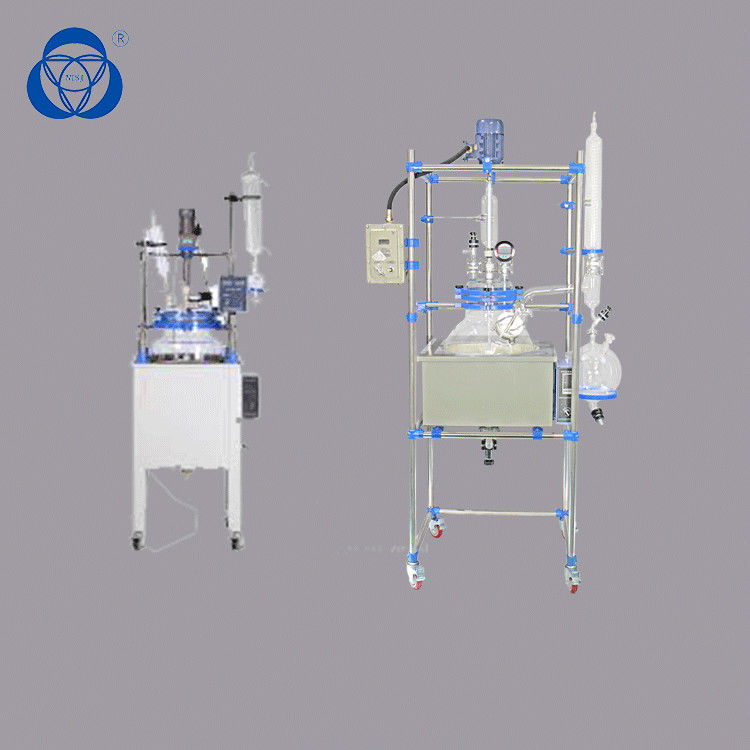

The lab jacketed chemical stirred glass reactor is designed double-level glass. The reaction material is put into the inner, which can be stirred. In the interbed with different cold and hot medium (refrigerating fluid, hot water and hot oil), do some heat circulation and cooling reaction. Under the constant temperature and ordinary pressure, as well as negative pressure, stirring reaction can be done in seal glass reactor, also back-flow, distillation. Etc.

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG17 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs)

Product Model	FSPGR-20
Volume(L)	20
Neck No.on Cover	6
External Diameter of Inner Vessel(mm)	460
External Diameter of Outer Vessel(mm)	500
Cover Diameter(mm)	340
Vessel Height(mm)	950
Motor Power(W)	370
Vacuum Degree(Mpa)	0.098
Rotation Speed(rpm)	50-600
Torque(Nm)	5.89
Power(V)	220
Dimension(mm)	10007002500
