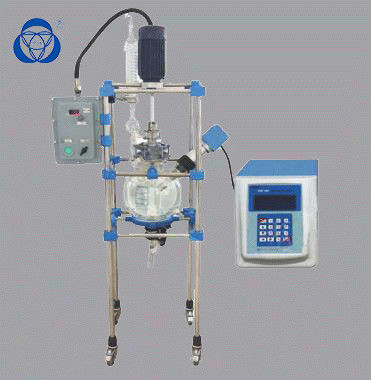

Name: Tank Glass Reactor Vessel Continuous Stirred 250W Pure PTFE Sealing Condition New
Brand: Nantong Sanjing Chemglass Co.,Ltd
SKU: FPGR-50
Availability: InStock

Home Products Glass Reactor Vessel

Tank Glass Reactor Vessel Continuous Stirred 250W Pure PTFE Sealing Condition New

Product Details:

Place of Origin:	CHINA
Brand Name:	Sanjing
Certification:	CE,ISO9001
Model Number:	FPGR-50

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time:	within 5days after payemnt received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/momth

Contact Now

Detailed Product Description

Reaction Bottle Cover Port::	6ports	Rotation Speed(Rpm)::	0-500
Reaction Flask(L):	50l Jacketed Glass Reactor	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Application:	Lab Stirring, Distillation	Type:	Reaction Kettle
Warranty:	12 Months	Feature:	Customizable
Highlight:	single layer glass reactor , borosilicate glass reactor

More accurate environment for experiment

1. The Pt100 sensor probe improve the temperature measurement accuracy, that saves time and reduces errors.

2. Sealed with PTFE components, the reaction system has high vacuum, at least -0.098 mpA.

3. Feeding is safer under negative pressure as the feeding flanged liquid inlet is equipped with the DN25-DN15 glass valve.

Suitable for small batches of agitation, separation, distillation, mixing and chemical synthesis, the jacket design provides high or low temperature environments for experiments. We can also supply single layer and triple layer (double jacket) glass reactor.

※ General of Ultrasonic continuous glass reactor on powder material in liquid phase of crushed,and dispersed, and mixed are used of is mechanical mixing, its processing time and process will very long, especially for diameter is less than 10um of solid particles .

※ In liquid in the of dispersed, for solid particles in mixing process ,in the of mixed rate and the quality transfer rate are has been reached limit value and into constants, at even again increased mixing of speed, its reaction also not has improved.

※ Ultrasonic reactor is the use of ultrasonic dispersion, grinding, activation, such as multiple effects, which can damage the solvent structure and improve reactivity, dispersing, grinding particle,so that its diameter to decrease further.

Main features

1, Machine has a 304 stainless steel frame and moveable design.

2, There are at least 5 preformed holes on the lid, which can help processing of liquid recycling, flowing in, temperature measuring, liquid adding, etc.

3, Glass reactor can work under vacuum and constant pressure.

4, In quiescent state, vacuum rate of its inner space can reach -0.098MPa.

5, Stirring hole of the lid will be sealed by alloy steel mechanical sealing part.

6, Connector is adopted PTFE material. Both of them will guarantee the vacuum rate of reactor inside space.

Name	Glass ultrasonic reactor
Operating frequency	22 ± 1KHz
Ultrasonic power	2500W
Horn	Φ25mm
Max capacity	20L
Temperature range	25~40 ℃ (base on your needs, heater or chiller is optional)
stirring	0~600 r / min
Reaction bottle neck	6 pcs (can be cusomized base on your needs too)
CE ISO certificate	Yes

* We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.

* Sufficient inner protection with different materials, including bubble bag, foam board and others.

* Qualified wooden package or carton for different products or as customer require

* Strict packing process to ensure the safety and completeness of the goods

Tank Glass Reactor Vessel Continuous Stirred 250W Pure PTFE Sealing Condition New

Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China.The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments .

Main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products which are widely used in pharmaceuticals , chemicals , biological pharmacy , new materials , noble metals and other files , meanwhile .
